Overview

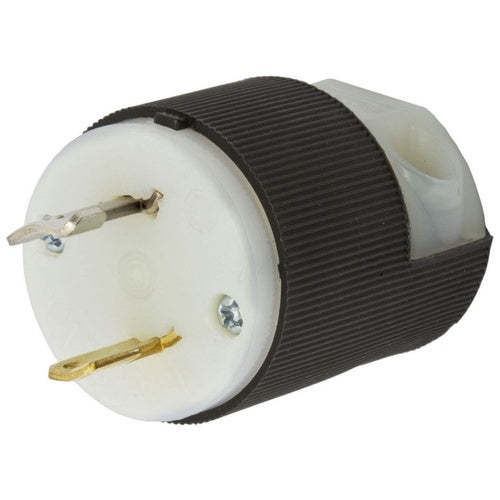

Hubbell HBL7545C Locking Plug-Nema L1-15P

Product Specifications

• UPC: 78358517850
• Number Of Wires: 2
• Ground Type: Non-Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.23 to 0.72 Inch
• Approval: UL 498, CSA C22.2
• Additional Information: Wire Size 18 to 10 AWG; Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Catalog Number: HBL7545C
• Brand Name: Wiring Device-Kellems
• Type: Polarized
• Constructional Feature: Impact/Chemical Resistant
• Configuration: L1-15P
• Voltage Rating: 125 Volt AC
• Current Rating: 15 Amp
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, MIDGET TWIST-LOCK, INDUSTRIAL, MALE PLUG, 15A 125V, 2-POLE 2-WIRE NON GROUNDING, L1-15P, SCREW TERMINAL, BLACK AND WHITE.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Polarized Type; Nylon Material; Black/White Color; L1-15P Configuration; 2 Wire(S); UL 498, CSA C22.2 Approval; 125 Volt AC Voltage Rating; 15 Amp Current Rating; Non-Grounding; 2 Pole(S); Impact/Chemical Resistant; 0.23 to 0.72 Inch Cord Size; TWIST-LOCK[R], INSULGRIP[R] Brand; Wire Size 18 to 10 AWG; Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585178509
• SKU Name: hubw hbl7545c

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
