Overview

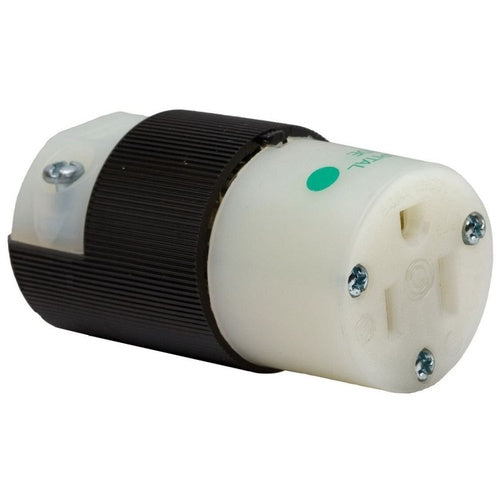

Hubbell HBL8219C Hospital Connector-Nema5-15R

Product Specifications

• UPC: 78358517950
• Color: Black/White
• Cord Size: 0.23 to 0.72 Inch
• Material: Nylon
• Grade: Hospital
• Approval: UL 498, CSA C22.2
• Additional Information: Blade Material 0.04 Inch Copper Alloy; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification W-C-596
• Catalog Number: HBL8219C
• Brand Name: Wiring Device-Kellems
• Configuration: 5-15R
• Voltage Rating: 125 Volt AC
• Current Rating: 15 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Catalog Description: STRAIGHT BLADE DEVICES, FEMALE CONNECTOR BODY, INSULGRIP, HOSPITAL GRADE, STRAIGHT, 2-POLE 3-WIRE GROUNDING, 15A 125V, 5-15R, BLACK AND WHITE, SINGLE PACK, CANADIAN VERSION.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon Material; Black/White Color; 5-15R Configuration; 3 Wire(S); Hospital Grade; UL 498, CSA C22.2 Approval; 125 Volt AC Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); 0.23 to 0.72 Inch Cord Size; INSULGRIP[R] Brand; Blade Material 0.04 Inch Copper Alloy; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification W-C-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Connector
• Unspsc: 39121421
• UPC 12 Digit: 783585179506
• SKU Name: hubw hbl8219c
