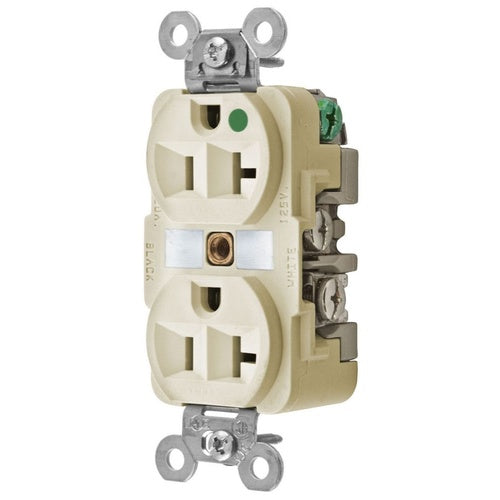

Hubbell HBL8300I Duplex Hospital Grade Receptacle-Nema5-20R Ivory

Overview

Hubbell HBL8300I Duplex Hospital Grade Receptacle-Nema5-20R Ivory

Product Specifications

• UPC: 78358543572
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Material: PBT (Face/Base)
• Color: Ivory
• Wiring: Back, Side
• Grade: Extra Heavy Duty Hospital, Industrial
• Approval: UL 498, CSA C22.2
• Additional Information: Power Rating 1 HP; Material Brass (Contact/Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-0; Applicable Standard Federal Specification WC-596, NEMA WD-6
• Catalog Number: HBL8300I
• Brand Name: Wiring Device-Kellems
• Model: HBL8300
• Type: Duplex
• Constructional Feature: Impact/Chemical Resistant
• Configuration: 5-20R
• Voltage Rating: 125 Volt
• Current Rating: 20 Amp
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, DUPLEX, HOSPITAL GRADE, 2-POLE 3-WIRE GROUNDING, 20A 125V, 5-20R, IVORY, SINGLE PACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex Type; Pbt (Face/Base) Material; Ivory Color; 5-20R Configuration; 3 Wire(S); Extra Heavy Duty Hospital, Industrial Grade; UL 498, CSA C22.2 Approval; 125 Volt Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); Impact/Chemical Resistant; Back, Side Wiring; Hbl [R] Brand; Power Rating 1 HP; Material Brass (Contact/Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-0; Applicable Standard Federal Specification WC-596, NEMA Wd-6; HBL8300 Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585435725
• SKU Name: hubw hbl8300i

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
