Overview

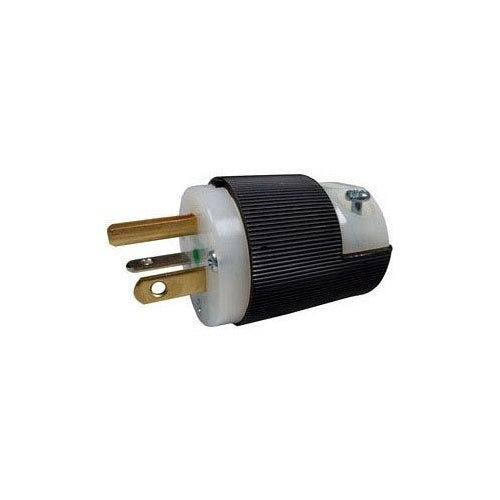

Hubbell HBL8315C Hospital Plug-Nema5-20P

Product Specifications

• UPC: 78358517995
• Cord Size: 0.23 to 0.72 Inch
• Material: Nylon
• Color: Black/White
• Grade: Hospital
• Approval: UL 498, CSA C22.2
• Additional Information: Blade Holder Material Nylon; Terminal Retainer Material PBT; Terminal Clamp Material Plated Steel; Terminal Screw Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification W-C-596
• Catalog Number: HBL8315C
• Brand Name: Wiring Device-Kellems
• Configuration: 5-20P
• Voltage Rating: 125 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Grounding
• Catalog Description: STRAIGHT BLADE DEVICES, MALE PLUG, INSULGRIP, HOSPITAL GRADE, STRAIGHT, 2-POLE 3-WIRE GROUNDING, 20A 125V, 5-20P, BLACK AND WHITE, SINGLE PACK.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Nylon Material; Black/White Color; 5-20P Configuration; 3 Wire(S); Hospital Grade; UL 498, CSA C22.2 Approval; 125 Volt AC Voltage Rating; 20 Amp Current Rating; Grounding; 2 Pole(S); 0.23 to 0.72 Inch Cord Size; INSULGRIP[R], VARI-SIZE[R] Brand; Blade Holder Material Nylon; Terminal Retainer Material Pbt; Terminal Clamp Material Plated Steel; Terminal Screw Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification W-C-596
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585179957
• SKU Name: hubw hbl8315c

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
