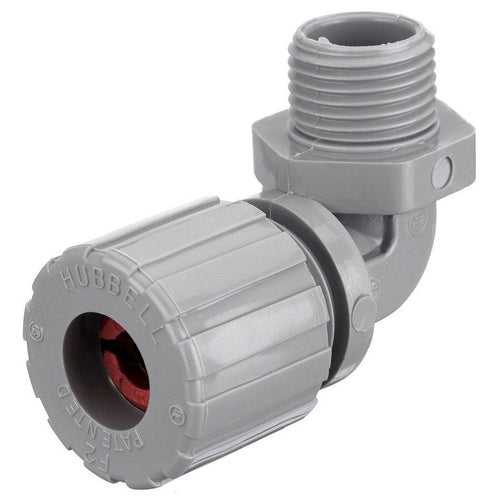

Hubbell NHC1021CR 90D Male Cord Connector, .19-.25", 1/2", Nylon

Overview

Hubbell NHC1021CR 90D Male Cord Connector, .19-.25", 1/2", Nylon

Product Specifications

• UPC: 78358520873
• Application: Hazardous Location
• Additional Information: Color Red; Temperature Rating -30 to 225 Deg F; Enclosure NEMA 4/4X/12/13, IP66
• Catalog Number: NHC1021CR
• Model: NHC
• Type: 90 Deg Male
• Thread Size: 1/2 Inch NPT
• Material: Gray Nylon
• Cord Size: 0.19 to 0.25 Inch
• Size: 1.41 Inch Dia x 2.5 Inch L x 1.99 Inch H
• Approval: UL 514B, CSA
• Catalog Description: KELLEMS WIRE MANAGEMENT, CORD CONNECTORS, 90 DEGREE MALE .19-.25", 1/2", NYLON
• Category: Cable & Cord Grips
• Full Technical Description: 90 Deg Male Type; Gray Nylon Material; 1.41 Inch Dia X 2.5 Inch L X 1.99 Inch H Size; UL 514B, CSA Approval; Hazardous Location Application; 1/2 Inch NPT Thread Size; 0.19 to 0.25 Inch Cord Size; Color Red; Temperature Rating -30 to 225 Deg F; Enclosure NEMA 4/4X/12/13, IP66; NHC Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 783585208732
• SKU Name: hubw nhc1021cr

Resources

• Manufacturer Spec Sheet
