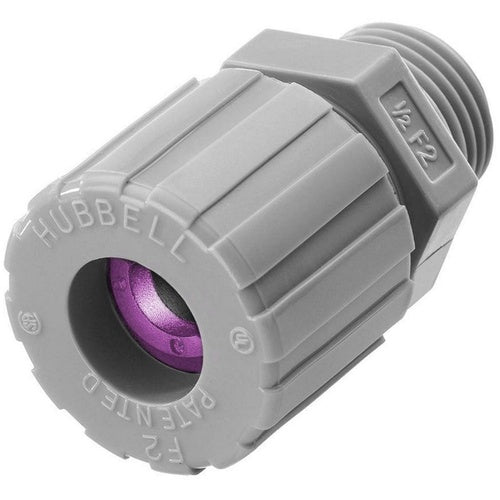

Hubbell SHC1042CR Cord Connector Straight Male, .75-.88", 1", Nylon, Gray

Overview

Hubbell SHC1042CR Cord Connector Straight Male, .75-.88", 1", Nylon, Gray

Product Specifications

• UPC: 78358520814
• Application: Hazardous Location
• Additional Information: Form Size F4; Color Code Orchid; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Catalog Number: SHC1042CR
• Brand Name: Wiring Device-Kellems
• Type: Straight Male
• Thread Size: 1 Inch Threaded
• Material: Gray Nylon
• Cord Size: 0.75 to 0.88 Inch
• Size: 1.88 Inch Diameter x 2.45 Inch Length
• Approval: UL 514B, CSA
• Catalog Description: KELLEMS WIRE MANAGEMENT, CORD CONNECTORS, STRAIGHT MALE, .75"-.88", 1", NYLON
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Gray Nylon Material; 1.88 Inch Diameter X 2.45 Inch Length Size; UL 514B, CSA Approval; Hazardous Location Application; 1 Inch Threaded Thread Size; 0.75 to 0.88 Inch Cord Size; Form Size F4; Color Code Orchid; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 783585208145
• SKU Name: hubw shc1042cr

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
