Product information
Overview

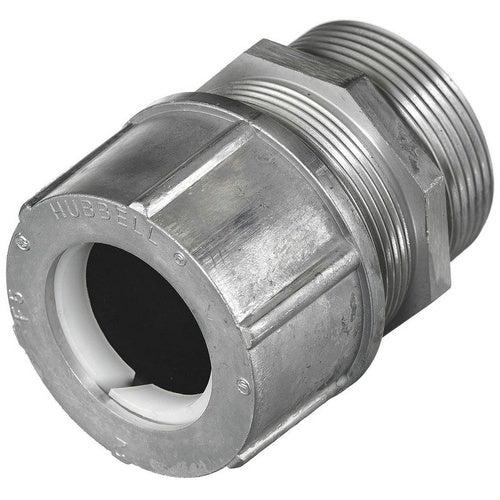

Hubbell SHC1050 Cord Connector, Straight Male, .75-.88", 1-1/4", Alum
Product Specifications
- UPC: 78358520050
- Application: Hazardous Location
- Additional Information: Color White; Temperature Rating -30 to 225 Deg F; Enclosure NEMA 4/4X/12/13, IP66
- Catalog Number: SHC1050
- Model: SHC
- Type: Straight Male
- Thread Size: 1-1/4 Inch NPT
- Material: Cast Aluminum
- Cord Size: 0.75 to 0.88 Inch
- Size: 2.31 Inch Dia x 2.44 Inch L
- Approval: UL 514B, CSA
- Catalog Description: KELLEMS WIRE MANAGEMENT, CORD CONNECTORS, STRAIGHT MALE, .75-.88", 1 1/4", ALUMINUM
- Category: Cable & Cord Grips
- Full Technical Description: Straight Male Type; Cast Aluminum Material; 2.31 Inch Dia X 2.44 Inch L Size; UL 514B, CSA Approval; Hazardous Location Application; 1-1/4 Inch NPT Thread Size; 0.75 to 0.88 Inch Cord Size; Color White; Temperature Rating -30 to 225 Deg F; Enclosure NEMA 4/4X/12/13, IP66; SHC Model
- Manufacturer: Hubbell Wiring Devices-Kellems
- Manufacturer Brand: Hubbell Wiring Devices-Kellems
- Sub Category: Flexible Cord/Cable Connector
- Unspsc: 39121431
- UPC 12 Digit: 783585200507
- SKU Name: hubw shc1050
