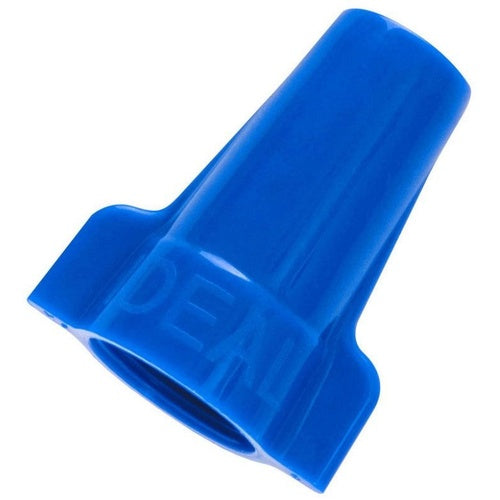

Ideal 30-454 Wing-Nut Wire Connector, Model 454 Blue, 25/Box

Overview

Ideal 30-454 Wing-Nut Wire Connector, Model 454 Blue, 25/Box

Product Specifications

• UPC: 78325030454
• Maximum Wire Combination Size: (1 to 2) 6 AWG
• Spring Type: Live Action
• Shell Material: Zinc Plated Thermoplastic Polymer
• Color: Blue
• Temperature Rating: 221 Deg F
• Approval: UL, CSA, IEC
• Additional Information: RoHS Compliant; Insert Material Steel; Overall Dimension 1.2 Inch Width x 1.45 Inch Height; Strip Length 7/8 Inch
• Catalog Number: 30-454
• Brand Name: WING-NUT[R]
• Model: 454
• Type: Contoured Wing
• Voltage Rating: 600 Volt
• Wire Type: Solid and/or Stranded
• Wire Size: 14 to 6 AWG
• Minimum Wire Combination Size: (5 to 6) 14 AWG
• Catalog Description: IDEAL, WIRE CONNECTOR, WING-NUT, TWIST-ON, NUMBER OF CONDUCTORS: 1 TO 6, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), CONDUCTOR RANGE: 14 - 6 AWG, MIN 3 - 12, MAX 1-6 W/2-8, MATERIAL: FLAME-RETARDANT POLYPROPELENE SHELL, COLOR: BLUE, VOLTAGE RATING: 600 V, MODEL NUMBER: 454, FLAMMABILITY RATING: UL94V-2
• Category: Fixture Connectors (Wire-Nuts,Etc.)
• Full Technical Description: Contoured Wing Type; Blue Color; (5 to 6) 14 AWG min. Wire Combination Size; (1 to 2) 6 AWG Max. Wire Combination Size; 14 to 6 AWG Wire Size; UL, CSA, IEC Approval; 600 Volt Voltage Rating; 221 Deg F Temperature Rating; Solid And/Or Stranded Wire Type; Zinc Plated Thermoplastic Polymer Shell Material; Live Action Spring Type; Wing-Nut [R] Brand; RoHS Compliant; Insert Material Steel; Overall Dimension 1.2 Inch Width X 1.45 Inch Height; Strip Length 7/8 Inch; 454 Model
• Made In Usa: Yes
• Manufacturer: Ideal Industries, Inc.
• Manufacturer Brand: Ideal Industries, Inc.
• Sub Category: Twist On Wire Connector
• Unspsc: 39121445
• UPC 12 Digit: 783250304547
• SKU Name: ideal 30454
