Product information
Overview

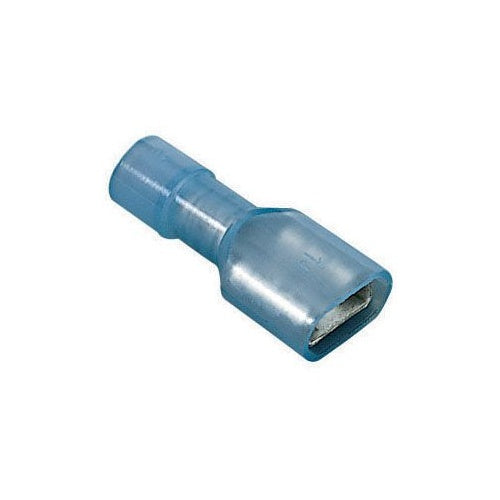

Ideal 83-9781 Fully Insulated Female Disconnect Terminal, #16 To #14 Awg
Product Specifications
- UPC: 78325049067
- Standard Package: 25 per Pack
- Approval: UL (Canada and US)
- Additional Information: Overall Dimension 0.866 Inch Length x 0.260 Inch Width; Voltage Rating 300 Volt; Insulation Diameter 0.185 Inch; Material Tin Plated Brass
- Catalog Number: 83-9781
- Type: Butted Seam
- Tab Size: 0.25 Inch x 0.032 Inch
- Minimum Conductor Size: 16 AWG
- Maximum Conductor Size: 14 AWG
- Color: Blue
- Insulation Type: Nylon Insulated
- Temperature Rating: 105 Deg C
- Catalog Description: IDEAL, DISCONNECT TERMINAL, FULLY INSULATED, WIRE SIZE: 16 - 14 AWG, VOLTAGE RATING: 300 V, MATERIAL: BRASS, NYLON, FINISH: TIN-PLATED, INSULATION: 0.185 IN DIAMETER, CONNECTION: FEMALE, TAB SIZE: 0.250 IN X 032 IN, TEMPERATURE RATING: 105 DEG C
- Category: Small Terminals & Connectors
- Full Technical Description: Butted Seam Type; Blue Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL (Canada and Us) Approval; 105 Deg C Temperature Rating; 25 Per Pack Standard Package; Nylon Insulated Insulation Type; 0.25 Inch X 0.032 Inch Tab Size; Overall Dimension 0.866 Inch Length X 0.260 Inch Width; Voltage Rating 300 Volt; Insulation Diameter 0.185 Inch; Material Tin Plated Brass
- Manufacturer: Ideal Industries, Inc.
- Manufacturer Brand: Ideal Industries, Inc.
- Sub Category: Female Disconnect
- Unspsc: 39121447
- UPC 12 Digit: 783250490677
- SKU Name: ideal 839781
