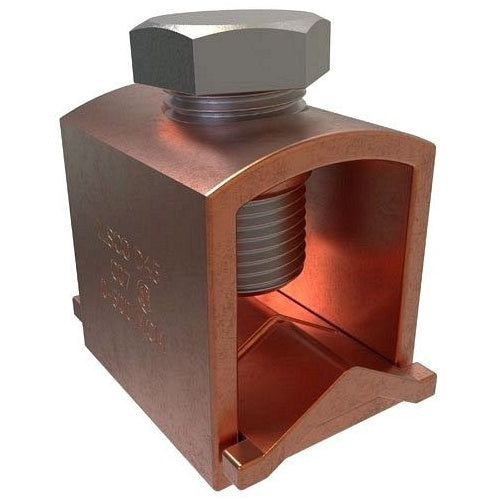

ILSCO CO7 1/0-500mcm Copper Box-Type Connector

Overview

Ilsco CO7 1/0-500mcm Copper Box-Type Connector

Product Specifications

• UPC: 78366902780
• Approval: UL 486A/B, CSA
• Additional Information: Size 1-1/8 Inch W x 1.416 Inch H; Temperature Rating 90 Deg C; Mounting Hole Tapped Size 1/4 to 20 Inch; Top Hole Tapped Size 5/8 to 18 Inch; Packaging Quantity 10
• Catalog Number: CO7
• Model: CO
• Type: Box
• Minimum Conductor Size: 1/0 AWG
• Maximum Conductor Size: 500 KCMIL
• Conductor Material: Copper
• Material: Electrolytic Seamless Copper
• Overall Length: 1-3/8 Inch
• Catalog Description: COPPER BOX-TYPE MECHANICAL LUG, CONDUCTOR RANGE 500-1/0, 1 HOLE
• Category: Large Terminals & Connectors
• Full Technical Description: Box Type; Electrolytic Seamless Copper Material; 1-3/8 Inch Overall Length; 1/0 AWG min. Conductor Size; 500 kcmil Max. Conductor Size; Copper Conductor Material; UL 486A/B, CSA Approval; Size 1-1/8 Inch W X 1.416 Inch H; Temperature Rating 90 Deg C; Mounting Hole Tapped Size 1/4 to 20 Inch; Top Hole Tapped Size 5/8 to 18 Inch; Packaging Quantity 10; CO Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669027808
• SKU Name: ilsco co7

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
