Overview

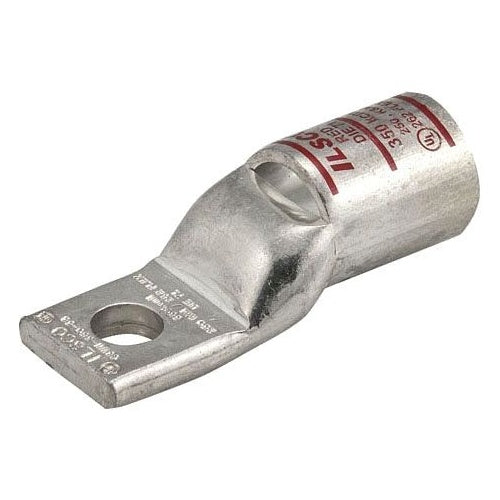

Ilsco CSWS-350-12 1-Hole Lug

Product Specifications

• UPC: 78366964301
• Pad Size: 1.25 Inch Length x 1.291 Inch Width
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Red
• Die Index: I-71
• Material: Electro Tin Plated High Strength Seamless Copper
• Overall Length: 2.936 Inch
• Approval: UL 453G/467/486A/B, CSA
• Additional Information: RoHS Compliant; With Sight Hole; Cable Entry Type Chamfered; Wire Strip Length 1.125 Inch; Temperature Rating 90 Deg C; Applicable Standard NEBS3
• Catalog Number: CSWS-350-12
• Brand Name: SureCrimp[R]
• Model: CSWS
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 350 KCMIL
• Barrel Type: Standard, Straight
• Barrel Length: 1.063 Inch
• Catalog Description: SURECRIMP COPPER COMPRESSION LUG, CONDUCTOR SIZE 350, 1 HOLE, 1/2IN BOLT SIZE, STANDARD BARREL, SIGHT WINDOW, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated High Strength Seamless Copper Material; Red Color; 2.936 Inch Overall Length; 1.063 Inch Barrel Length; Copper Conductor Material; UL 453G/467/486A/B, CSA Approval; 35 Kilovolt Voltage Rating; 350 kcmil Conductor Size; 1/2 Inch Stud Size; I-71 Die Index; 1.25 Inch Length X 1.291 Inch Width Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; Surecrimp [R] Brand; RoHS Compliant; With Sight Hole; Cable Entry Type Chamfered; Wire Strip Length 1.125 Inch; Temperature Rating 90 Deg C; Applicable Standard NEBS3; CSWS Model
• Made In Usa: Yes
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Lug
• Unspsc: 39121448
• UPC 12 Digit: 783669643015
• SKU Name: ilsco csws35012

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
