ILSCO CSWS-4/0-14 4/0 Kcmil Connector

Overview

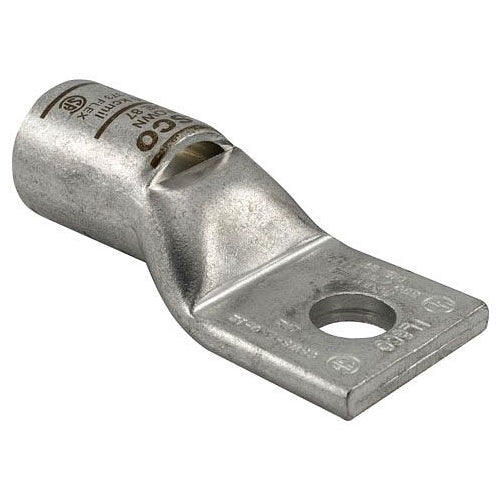

Ilsco CSWS-4/0-14 4/0 Kcmil Connector

Product Specifications

• UPC: 78366963957
• Pad Size: 0.875 Inch L x 0.999 Inch W x 0.141 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Purple
• Die Index: I-54
• Material: Seamless Electro-Tin Plated Copper
• Overall Length: 2.241 Inch
• Approval: UL 453G, UL 467, UL 486A/B, CSA
• Additional Information: ROHS Compatible; Size 0.546 Inch ID x 0.687 Inch OD; Barrel Type Chamfered Entry; Temperature Rating 90 Deg C
• Catalog Number: CSWS-4/0-14
• Brand Name: SureCrimp[R]
• Model: CSWS
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 4/0 AWG
• Barrel Type: Standard
• Barrel Length: 0.875 Inch
• Catalog Description: SURECRIMP COPPER COMPRESSION LUG, CONDUCTOR SIZE 4/0, 1 HOLE, 1/4IN BOLT SIZE, STANDARD BARREL, SIGHT WINDOW, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Seamless Electro-Tin Plated Copper Material; Purple Color; 2.241 Inch Overall Length; 0.875 Inch Barrel Length; Copper Conductor Material; UL 453G, UL 467, UL 486A/B, CSA Approval; 35 kV Voltage Rating; 4/0 AWG Conductor Size; 1/4 Inch Stud Size; I-54 Die Index; 0.875 Inch L X 0.999 Inch W X 0.141 Inch Thk Pad Size; 1 Pad Hole(S); Standard Barrel Type; Surecrimp [R] Brand; RoHS Compatible; Size 0.546 Inch ID X 0.687 Inch OD; Barrel Type Chamfered Entry; Temperature Rating 90 Deg C; CSWS Model
• Made In Usa: Yes
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Lug
• Unspsc: 39121448
• UPC 12 Digit: 783669639575
• SKU Name: ilsco csws4/014
