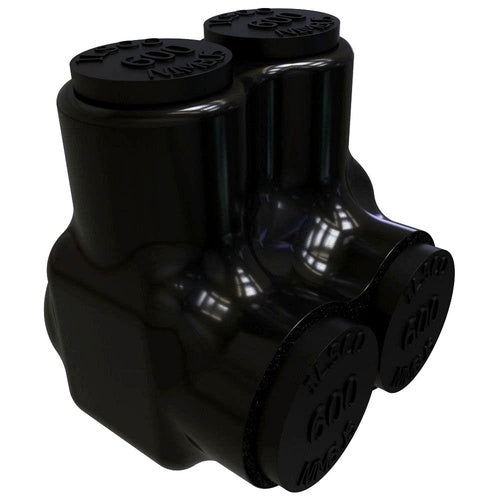

Ilsco PBTS-2-500 2-Port Insulated Tap Connector
Product Specifications
- UPC: 78366908028
- Maximum Conductor Size: 600 KCMIL
- Body Material: High Dielectric Strength Plastisol Insulated
- Approval: UL 453G, UL 486A/B, CSA
- Additional Information: ROHS Compliant; Size 2.97 Inch L x 2.28 Inch W x 3.04 Inch H; Screw Size 3/8 Inch Hex; Temperature Rating 90 Deg C, -45 Deg C (Cold)
- Catalog Number: PBTS-2-500
- Brand Name: NIMBUS[R]
- Model: PBTS
- Voltage Rating: 600 V
- Number Of Ports: 2
- Cable Entry: 1 Side Entry
- Conductor Material: Copper/Aluminum
- Minimum Conductor Size: 4 AWG
- Catalog Description: NIMBUS INSULATED ALUMINUM MULTI-TAP CONNECTOR, CONDUCTOR RANGE 600-4, 2 PORTS, SINGLE SIDED ENTRY, TIN PLATED, UL, CSA
- Category: Splicing & Terminating Kits
- Full Technical Description: 4 AWG min. Conductor Size; 600 kcmil Max. Conductor Size; Copper/Aluminum Conductor Material; UL 453G, UL 486A/B, CSA Approval; 600 V Voltage Rating; High Dielectric Strength Plastisol Insulated Body Material; 2 Port(S); 1 Side Entry Cable Entry; Nimbus [R] Brand; RoHS Compliant; Size 2.97 Inch L X 2.28 Inch W X 3.04 Inch H; Screw Size 3/8 Inch Hex; Temperature Rating 90 Deg C, -45 Deg C (Cold); PBTS Model
- Manufacturer: ILSCO Corp.
- Manufacturer Brand: ILSCO Corp.
- Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- Sub Category: Mechanical Multiple Cable Tap
- Unspsc: 39121408
- UPC 12 Digit: 783669080285
- SKU Name: ilsco pbts2500
