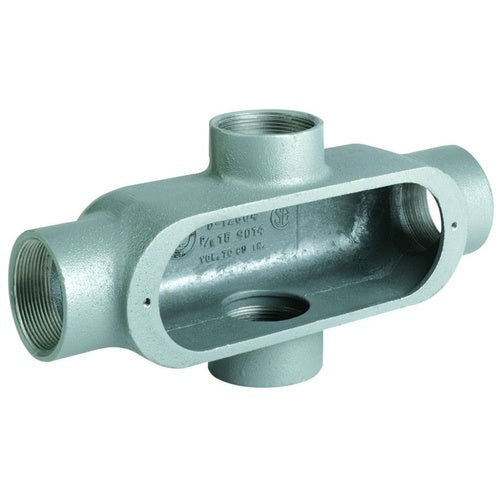

Killark OX-2 3/4" Aluminum X-Type Conduit Body

Overview

Heavy-duty construction for maximum durability, High-performance motor for efficient operation, User-friendly interface for easy operation, Low maintenance requirements for cost efficiency

Product Specifications

• UPC: 78393655002
• Hub Size: 3/4 Inch
• Size: 6-1/6 Inch L x 2 Inch W x 2-7/8 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Form Type: Form 5
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: OX-2
• Brand Name: DURALOY[R]
• Model: O/5
• Access Opening: Side
• Configuration: X
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: Cross
• Number Of Hubs: 4
• Catalog Description: 3/4" X HUB, ALUMINUM O SERIES CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 6-1/6 Inch L X 2 Inch W X 2-7/8 Inch H Size; Rigid Conduit/Imc Used on; 3/4 Inch Hub Size; Threaded (Imc/Rigid) Installation; X Configuration; 4 Hub(S); UL, CSA Approval; Stamped and Cast Stainless Steel Screw-on Cover Type; Cross Hub Location; Form 5 Form Type; Side Access Opening; DURALOY[R]5 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; O/5 Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936550022
• SKU Name: KLRK OX2
