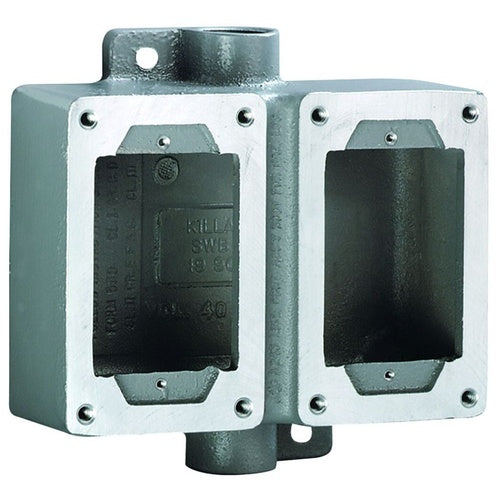

Killark SWB-10 1/2" Explosion-Proof Box

Overview

High load capacity of up to 500 lbs, Durable construction for extended service life, Easy installation and maintenance, Designed for optimal performance in various applications

Product Specifications

• UPC: 78393663010
• Hub Location: (1) Top, (1) Bottom
• Hub Size: 1/2 Inch
• Material: Cast Copper Free Aluminum Alloy
• Shape: Shallow
• Mounting Hardware: (2) Lugs
• Approval: UL, CSA
• Catalog Number: SWB-10
• Model: SWB
• Type: Feed Through
• Height: 5-7/8 Inch
• Width: 6-1/2 Inch
• Depth: 2-1/4 Inch
• Number Of Gangs: 2
• Number Of Hubs: 2
• Catalog Description: SWB SERIES - ALUMINUM FEED-THRU DOUBLE-GANG DEVICE BODY FOR USE WITH XCS/XS/XT COVER ASSEMBLIES - HUB SIZE 1/2 INCH
• Category: Junction, Surface, & Back Boxes
• Full Technical Description: Feed Through Type; Cast Copper Free Aluminum Alloy Material; 6-1/2 Inch; 5-7/8 Inch; 2-1/4 Inch; Shallow Shape; 1/2 Inch Hub Size; 2 Hub(S); 2 Gang(S); UL, CSA Approval; (2) Lugs Mounting Hardware; (1) Top, (1) Bottom Hub Location; SWB Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39122216
• UPC 12 Digit: 783936630106
• SKU Name: KLRK SWB10
