Overview

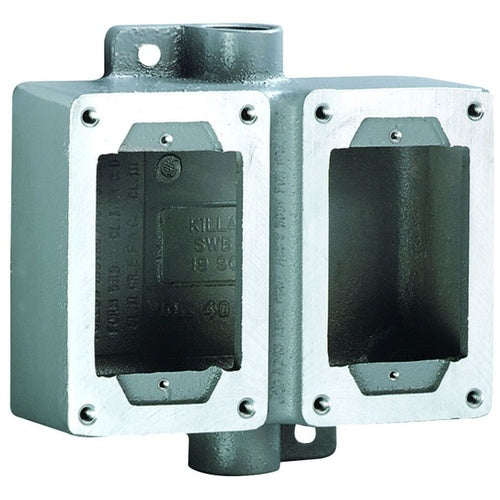

Killark SWB-12 1" Explosion-Proof Box

Product Specifications

• Catalog Description: SWB SERIES - ALUMINUM FEED-THRU DOUBLE-GANG DEVICE BODY FOR USE WITH XCS/XS/XT COVER ASSEMBLIES - HUB SIZE 1 INCH
• Full Technical Description: Feed Through Type; Cast Copper Free Aluminum Alloy Material; 6-1/2 Inch; 5-7/8 Inch; 2-1/4 Inch; Shallow Shape; 1 Inch Hub Size; 2 Hub(S); 2 Gang(S); UL, CSA Approval; (2) Lugs Mounting Hardware; (1) Top, (1) Bottom Hub Location; SWB Model
• Part Number: SWB-12
• UPC: 78393663012
• UPC 12 Digit: 783936630120
• Hub Location: (1) Top, (1) Bottom
• Hub Size: 1 Inch
• Material: Cast Copper Free Aluminum Alloy
• Shape: Shallow
• Mounting Hardware: (2) Lugs
• Approval: UL, CSA
• Model: SWB
• Type: Feed Through
• Height: 5-7/8 Inch
• Width: 6-1/2 Inch
• Depth: 2-1/4 Inch
• Number of Gangs: 2
• Number of Hubs: 2
• Made in USA: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• UNSPSC: 39122216
