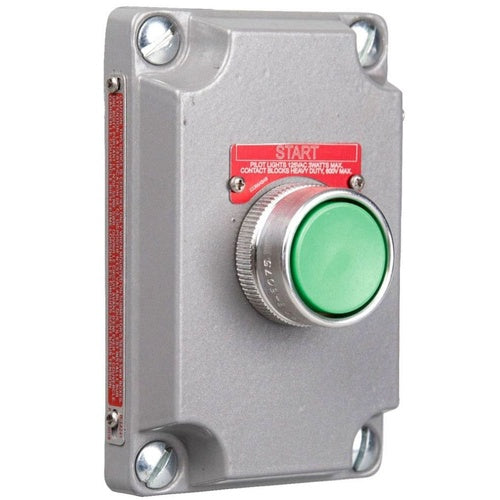

Killark XCS-0B1 Pushbutton Station

Overview

High load capacity of up to 2,500 lbs, Precision-engineered components for optimal performance, Corrosion-resistant finish for enhanced durability, Easy installation and maintenance

Product Specifications

• UPC: 78393689005
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G
• Used On: XCS Series Pushbutton Control Station
• Approval: UL, CSA
• Catalog Number: XCS-0B1
• Model: XCS
• Contact Rating: 600 VAC 10 Ampere
• Operation Type: Momentary
• Contact Configuration: 1NO
• Number Of Pushbuttons: 1
• Cap/Lens Color: Green
• Material: Cast Copper Free Aluminum Alloy
• Catalog Description: XCS SERIES - ALUMINUM MOMENTARY CONTACT SINGLE PUSH BUTTON COVER WITH DEVICE - GREEN BUTTON WITH "START" NAMEPLATE - 1NO CONTACT RATING
• Category: Control Station Cover Assemblies
• Full Technical Description: Cast Copper Free Aluminum Alloy Material; Xcs Series Pushbutton Control Station Used on; 1NO Contact Configuration; Momentary Operation Type; 600 VAC 10 Ampere Contact Rating; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; Green Cap/Lens Color; 1 Pushbutton(S); XCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pushbutton Cover
• Unspsc: 39122216
• UPC 12 Digit: 783936890050
• SKU Name: KLRK XCS0B1
