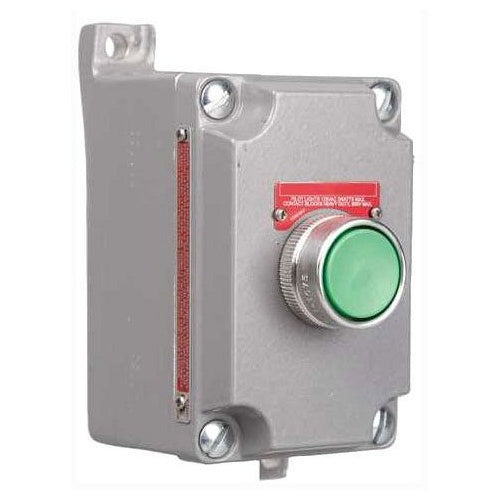

Killark XCS-2B1 Control Station Cover Assembly

Overview

High load capacity for demanding applications, Corrosion-resistant finish for enhanced durability, Easy installation and maintenance, Precision-engineered for optimal performance

Product Specifications

• UPC: 78393689084
• Operator Type: Front Operated Button
• Hub Size: 3/4 Inch
• Enclosure Material: Cast Copper Free Aluminum Alloy
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G
• Approval: UL, CSA
• Additional Information: Button Color Green
• Catalog Number: XCS-2B1
• Model: XCS
• Type: Dead End
• Voltage Rating: 600 VAC
• Current Rating: 10 Ampere
• Legend: Start
• Number Of Elements: 1
• Contact Configuration: 1NO, Momentary
• Catalog Description: XCS SERIES - ALUMINUM DEAD-END MOMENTARY CONTACT SINGLE PUSH BUTTON CONTROL STATION - GREEN BUTTON WITH "START" NAMEPLATE - HUB SIZE 3/4INCH - 1NO CONTACT RATING
• Category: Control Station Cover Assemblies
• Full Technical Description: Dead End Type; 1NO, Momentary Contact Configuration; 3/4 Inch Hub Size; Cast Copper Free Aluminum Alloy Enclosure Material; UL, CSA Approval; 600 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; 10 Ampere Current Rating; Start Legend; Front Operated Button Operator Type; 1 Element(S); Button Color Green; XCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39122216
• UPC 12 Digit: 783936890845
• SKU Name: KLRK XCS2B1
