Overview

High tensile strength for enhanced durability, Corrosion-resistant coating for extended lifespan, Easy installation with standard mounting options

Product Specifications

• UPC: 78393689020
• Operator Type: Front Operated Button
• Hub Size: 3/4 Inch
• Enclosure Material: Cast Copper Free Aluminum Alloy
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G
• Approval: UL, CSA
• Additional Information: Button Color Green, Red
• Catalog Number: XCS-5B4
• Model: XCS
• Type: Feed Through
• Voltage Rating: 600 VAC
• Current Rating: 10 Ampere
• Legend: Start/Stop
• Number Of Elements: 2
• Contact Configuration: 1NO-1NC, Momentary

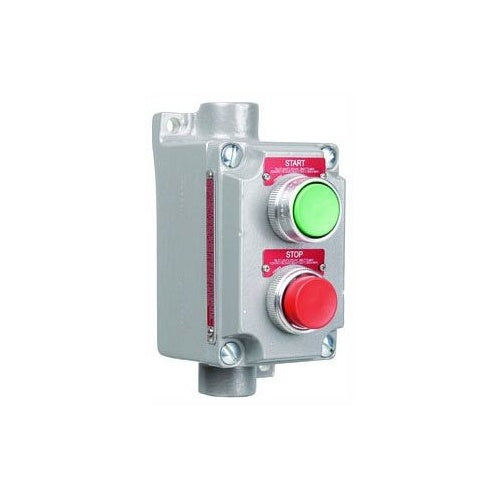

• Catalog Description: XCS SERIES - ALUMINUM FEED-THRU MOMENTARY CONTACT DOUBLE PUSH BUTTON CONTROL STATION - GREEN BUTTON WITH "START" NAMEPLATE - RED BUTTON WITH"STOP" NAMEPLATE - HUB SIZE 3/4" - 1NO/1NC CONTACT RATING
• Category: Control Station Complete Assemblies
• Full Technical Description: Feed Through Type; 1NO-1NC, Momentary Contact Configuration; 3/4 Inch Hub Size; Cast Copper Free Aluminum Alloy Enclosure Material; UL, CSA Approval; 600 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; 10 Ampere Current Rating; Start/Stop Legend; Front Operated Button Operator Type; 2 Element(S); Button Color Green, Red; XCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39122216
• UPC 12 Digit: 783936890203
• SKU Name: KLRK XCS5B4
