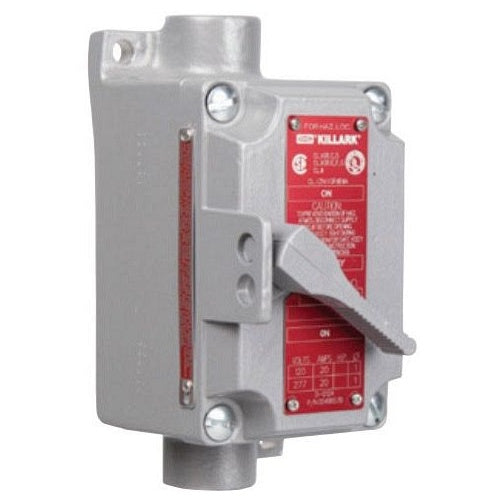

Killark XS-52C 2P Explosion-Proof Switch

Overview

High durability for long-lasting performance, Easy installation with minimal downtime, Compatible with a wide range of industrial systems, Designed for high-load applications

Product Specifications

• UPC: 78393693056
• Hub Size: 3/4 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class l Zone 1 and 2 Group llA llB, Class II Div 1 and 2 Group E F G, Class lll, NEMA 7CD, NEMA 9EFG
• Approval: UL, CSA
• Additional Information: Power Rating 3-Phase, 3 HP, 240 Volt AC, 5 HP 480 Volt AC; Application Making, Breaking Electrical Circuit
• Catalog Number: XS-52C
• Brand Name: Killark
• Model: XS
• Type: Feed-Through
• Voltage Rating: 120/277 Volt AC
• Current Rating: 20 Amp
• Contact Configuration: 2-Pole
• Operator Type: Front Operated Lever
• Catalog Description: XS SERIES - ALUMINUM FEED-THRU 2-POLE TUMBLER SWITCH UNIT - HUB SIZE 3/4 INCH - 20A
• Category: Level Switches & Accessories
• Full Technical Description: Feed-Through Type; 2-Pole Contact Configuration; 3/4 Inch Hub Size; UL, CSA Approval; 120/277 Volt AC Voltage Rating; Class I Div 1 and 2 Group C D, Class L Zone 1 and 2 Group Lla Llb, Class II Div 1 and 2 Group E F G, Class Lll, NEMA 7CD, NEMA 9EFG Enclosure; 20 Amp Current Rating; Front Operated Lever Operator Type; Power Rating 3-Phase, 3 HP, 240 Volt AC, 5 HP 480 Volt AC; Application Making, Breaking Electrical Circuit; XS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Tumbler/Snap Switch Control Station
• Unspsc: 39122211
• UPC 12 Digit: 783936930565
• SKU Name: KLRK XS52C
