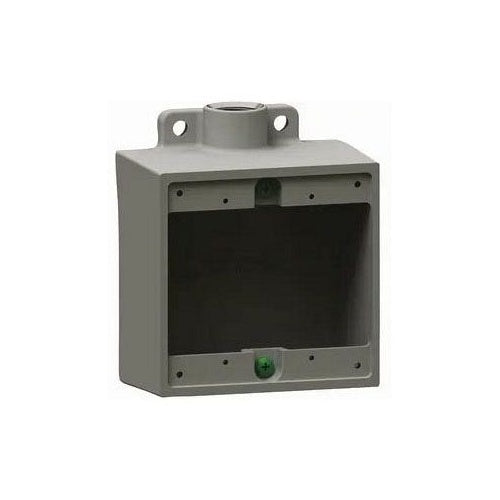

Killark 2FD-1 Device Box 2-Gang Aluminum 1/2"

Overview

Killark 2FD-1 Device Box 2-Gang Aluminum 1/2"

Product Specifications

• UPC: 78393615004
• Hub Location: End
• Hub Size: 1/2 Inch
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Shape: Deep
• Configuration Type: FD
• Mounting Hardware: Not Included
• Approval: UL 514A, CSA C22.2
• Catalog Number: 2FD-1
• Model: 2FD
• Height: 4-5/8 Inch
• Width: 4-11/16 Inch
• Depth: 2-15/16 Inch
• Capacity: 47 Cu Inch
• Number Of Gangs: 2
• Number Of Hubs: 1
• Catalog Description: 1/2" ALUMINUM, 2FD TYPE TWO GANG DEEP DEVICE BOX
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 4-11/16 Inch; 4-5/8 Inch; 2-15/16 Inch; Deep Shape; 1/2 Inch Hub Size; 1 Hub(S); 2 Gang(S); UL 514A, CSA C22.2 Approval; 47 Cu Inch Capacity; Not Included Mounting Hardware; End Hub Location; FD Configuration Type; 2FD Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39121308
• UPC 12 Digit: 783936150048
• SKU Name: klrk 2fd1

Resources

• Manufacturer Spec Sheet
• Technical Drawing
