Killark 3FST 3-Gang Switch Cover

Overview

Killark 3FST 3-Gang Switch Cover

Product Specifications

• UPC: 78393619352
• Approval: UL, CSA
• Additional Information: Includes Gasket; Applicable Standard and Hostile Location
• Catalog Number: 3FST
• Model: FST
• Device Type: (3) Toggle Switch
• Number Of Gangs: 3
• Operator Type: Plunger
• Material: Cast Electrostatically Applied Powder Coated Metal
• Mounting: Box
• Mounting Position: Vertical
• Catalog Description: FZ/FCL-GF/FST SERIES FITTINGS- STANDARD AND HAZARDOUS LOCATION- CAST DEVICE COVERS- TWO AND THREE GANG BOXES WITH GASKETS INCLUDED- 3 TOGGLE SWITCHES
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: Cast Electrostatically Applied Powder Coated Metal Material; 3 Gang(S); UL, CSA Approval; Box Mounting; Plunger Operator Type; (3) Toggle Switch Device Type; Vertical Mounting Position; Includes Gasket; Applicable Standard and Hostile Location; FST Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box Cover With Operator
• Unspsc: 39121308
• UPC 12 Digit: 783936193526
• SKU Name: klrk 3fst

Resources

• Manufacturer Spec Sheet

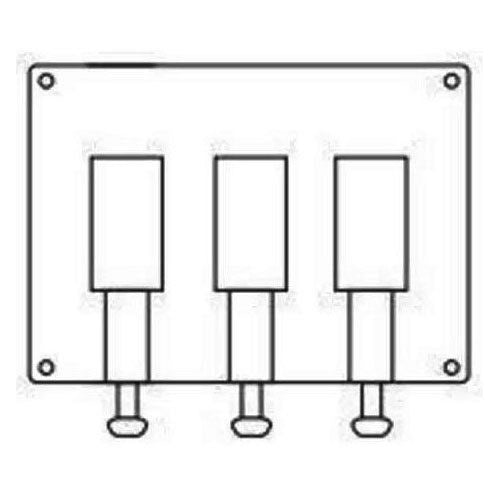

• Technical Drawing
