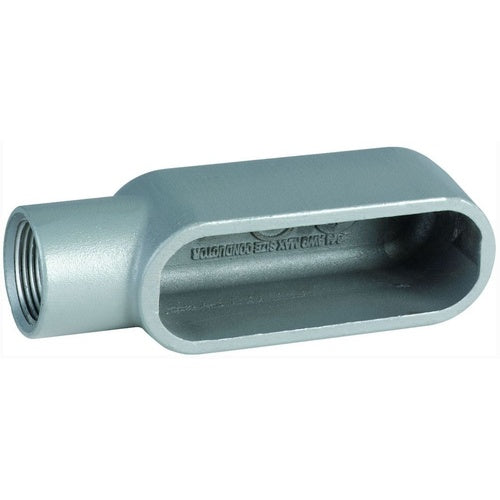

Killark E17 1/2Hub E-Type Conduit Body

Overview

Killark E17 1/2Hub E-Type Conduit Body

Product Specifications

• UPC: 78393601190
• Material: Gray Iron
• Form Type: Form 7
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Fed Spec W-C-586D/A-A 50563
• Catalog Number: E17
• Access Opening: Back
• Configuration: E
• Cover Type: Stainless Steel
• Number Of Hubs: 1
• Hub Size: 1/2 Inch
• Size: 4-11/16 Inch L x 1-7/16 Inch W x 1-1/2 Inch H
• Installation: Spring Clip
• Catalog Description: 1/2" E HUB, IRON DURALOY 7 CONDUIT BODY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Gray Iron Material; 4-11/16 Inch L X 1-7/16 Inch W X 1-1/2 Inch H Size; Rigid Conduit/Imc Used on; 1/2 Inch Hub Size; Spring Clip Installation; E Configuration; 1 Hub(S); UL, CSA Approval; Stainless Steel Cover Type; Form 7 Form Type; Back Access Opening; DURALOY[R]7 Brand; Applicable Standard Fed Spec W-C-586D/A-A 50563
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936011905
• SKU Name: klrk e17
