Overview

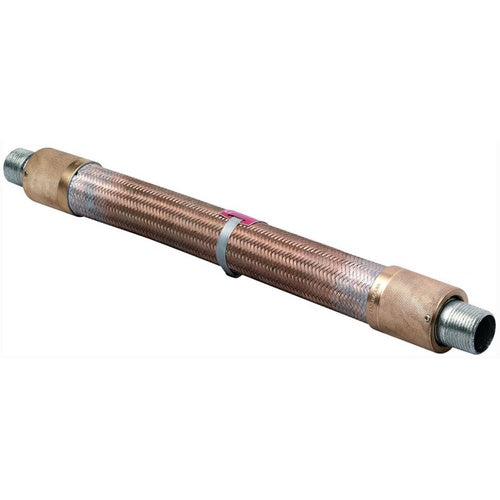

Killark EKJ-318 1" Flex Coupling

Product Specifications

• UPC: 78393601402
• Approval: UL, CSA
• Additional Information: Application Hazardous Location; Overall Dimension 1-15/16 Inch Dia x 23-3/4 Inch L
• Catalog Number: EKJ-318
• Model: EKJ
• Trade Size: 1 Inch
• Fitting Material: Zinc Plated Steel Nipple
• Material: Bronze, Jute Fiber Tube
• End Type: (2) Female Nipple
• Length: 18 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III
• Catalog Description: EKJ SERIES - BRONZE FLEXIBLE COUPLING - HUB SIZE 1 INCH - FLEXIBLELENGTH 18 INCH
• Category: Miscellaneous Conduit Bodies
• Full Technical Description: Bronze, Jute Fiber Tube Material; 18 Inch; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1 Inch Trade Size; (2) Female Nipple End Type; Zinc Plated Steel Nipple Fitting Material; Application Hazardous Location; Overall Dimension 1-15/16 Inch Dia X 23-3/4 Inch L; EKJ Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131708
• UPC 12 Digit: 783936014029
• SKU Name: klrk ekj318

Resources

• Manufacturer Spec Sheet
