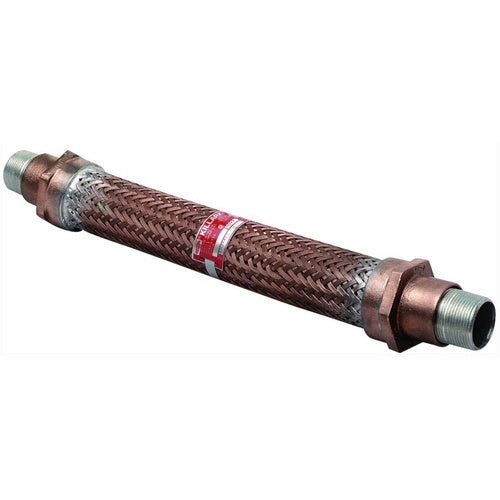

Killark EKJ-424 1-1/4" x 24 Explosion-Proof Flex Coupling

Overview

Killark EKJ-424 1-1/4" x 24 Explosion-Proof Flex Coupling

Product Specifications

• UPC: 78393610787
• Approval: UL, CSA
• Additional Information: Application Hazardous Location; Overall Dimension 2-15/16 Inch Dia x 30-5/8 Inch L
• Catalog Number: EKJ-424
• Model: EKJ
• Trade Size: 1-1/4 Inch
• Fitting Material: Zinc Plated Steel Nipple
• Material: Bronze, Jute Fiber Tube
• End Type: (2) Female Nipple
• Length: 24 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III
• Catalog Description: EKJ SERIES - BRONZE FLEXIBLE COUPLING - CONDUIT HUB SIZE 1-1/4 IN -FLEXIBLE LENGTH 24 IN
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Bronze, Jute Fiber Tube Material; 24 Inch; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1-1/4 Inch Trade Size; (2) Female Nipple End Type; Zinc Plated Steel Nipple Fitting Material; Application Hazardous Location; Overall Dimension 2-15/16 Inch Dia X 30-5/8 Inch L; EKJ Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Flexible Conduit Coupling
• Unspsc: 39131708
• UPC 12 Digit: 783936107875
• SKU Name: klrk ekj424
