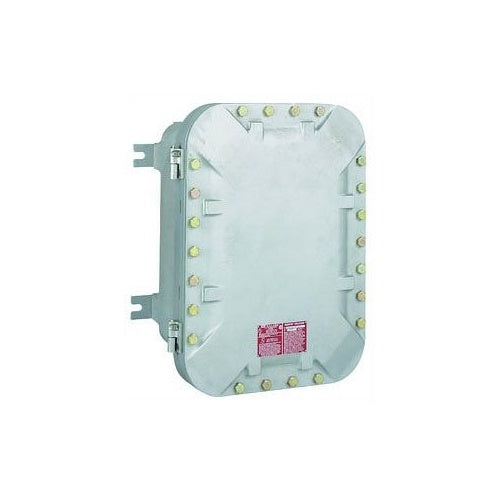

Killark EXB-12186-N34 Quantum Enclosure 12X18X6 Cast Aluminum

Overview

Killark EXB-12186-N34 Quantum Enclosure 12X18X6 Cast Aluminum

Product Specifications

• UPC: 78393611905
• Body Finish: Aluminum Lacquer Paint
• Cover Material: Steel
• Mounting: Lug
• Approval: UL 886/698/1203, CSA C22.2
• Catalog Number: EXB-12186 N34
• Brand Name: QUANTUM[R]
• Model: EXB
• Hub Size: 3 Inch
• Overall Size: 18 Inch L x 12 Inch W x 6 Inch D
• Inner Size: 17.5 Inch L x 11.5 Inch W x 6 Inch D
• Enclosure: Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIB+H2 IIA, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66
• Body Material: Copper Free Cast Aluminum
• Catalog Description: EXB SERIES, 12 X 18 X 6, CLASS I, II, III, BCDEFG, CAST ALUMINUM, TYPE 4, BOLTED ENCLOSURE
• Category: Outlet Boxes - Non Metallic
• Full Technical Description: 18 Inch L X 12 Inch W X 6 Inch D Overall Size; 17.5 Inch L X 11.5 Inch W X 6 Inch D Inner Size; 3 Inch Hub Size; UL 886/698/1203, CSA C22.2 Approval; Lug Mounting; Class I Div 1 and 2 Group B C D, Class I Zone 1 and 2 Group IIB+H2 Iia, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, NEMA 3/4/4X/7B/7C/7D/9E/9F/9G, IP66 Enclosure; Copper Free Cast Aluminum Body Material; Steel Cover Material; Aluminum Lacquer Paint Body Finish; QUANTUM[R] Brand; EXB Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Junction Box
• Unspsc: 39121314
• UPC 12 Digit: 783936119052
• SKU Name: klrk exb12186n34

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
• Technical Line Drawing
