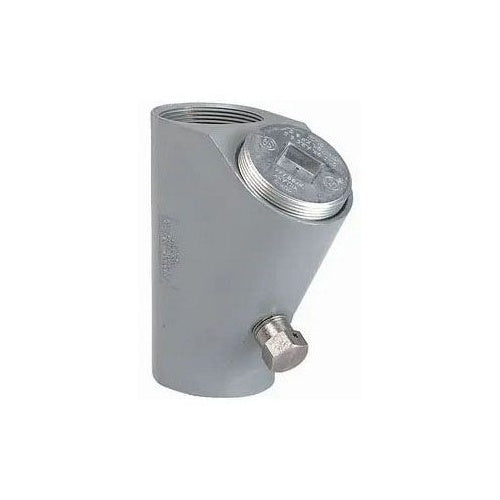

Killark EYD-5M 1-1/2" Sealing Fitting

Product Specifications

• UPC: 78393611167
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL, CSA
• Additional Information: Overall Dimension 4-5/8 Inch W x 5-1/8 Inch H
• Catalog Number: EYD-5M
• Model: EYD
• Type: Drain, Hub
• Turning Radius: 3-7/16 Inch
• Trade Size: 1-1/2 Inch
• Connection Type: Female Threaded, Female
• Material: Electrozinc Chromate Sealant Electrostatically Applied Powder Coated Duraloy Iron
• Mounting Position: Vertical
• Catalog Description: KILLARKS EYD DRAIN SEALING FITTINGS OFFERS OPTIONS FOR INSTALLING IN VERTICAL POSITIONS FOR HARSH HAZARDOUS LOCATIONS WHERE THERE IS A PROBABILITY THAT LIQUID OR OTHER CONDENSED VAPOR MAY BE TRAPPED WITHIN ENCLOSURES OR IN THE CONDUIT RACEWAY SYSTEM. EYD SERIES CAN MAKE ANY SEALING NEEDS SIGNIFICANT BY OFFERING A MINIMIZED TURN RADIUS FOR MAXIMIZED INSTALLATIONS. OPTIONS ARE AVAILABLE IN COPPER-FREE ALUMINUM AND DURALOY IRON WITH SUPERIOR ELECTRO-STATICALLY APPLIED POWDER COATING FOR THE BEST CORROSIVE RESISTANCE.
• Category: Steel Sealing Bodies
• Full Technical Description: Drain, Hub Type; Electrozinc Chromate Sealant Electrostatically Applied Powder Coated Duraloy Iron Material; Female Threaded, Female Connection Type; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1-1/2 Inch Trade Size; Vertical Mounting Position; 3-7/16 Inch Turning Radius; Overall Dimension 4-5/8 Inch W X 5-1/8 Inch H; EYD Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 783936111674
• SKU Name: klrk eyd5m
