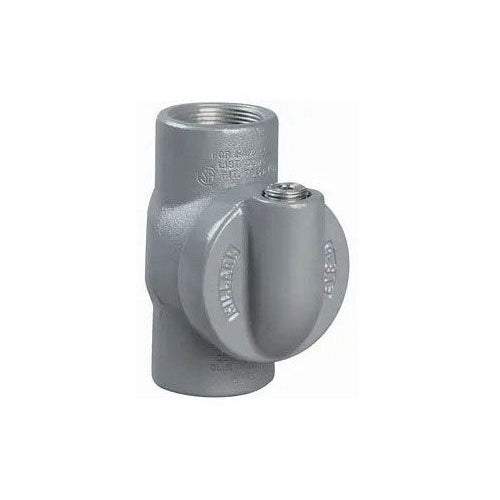

Killark EYS-2 3/4" Explosion-Proof Seal

Overview

Killark EYS-2 3/4" Explosion-Proof Seal

Product Specifications

• UPC: 78393611012
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL, CSA
• Additional Information: Overall Dimension 2-1/16 Inch W x 4-1/16 Inch H
• Catalog Number: EYS-2
• Model: EYS
• Type: Hub
• Turning Radius: 1-9/32 Inch
• Trade Size: 3/4 Inch
• Connection Type: Female Threaded, Female
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Mounting Position: Horizontal/Vertical
• Catalog Description: " EYS SEAL FITTING ALUMINUM, FEMALE/FEMALE
• Category: Aluminum Sealing Bodies
• Full Technical Description: Hub Type; Electrostatically Applied Powder Coated Copper Free Aluminum Material; Female Threaded, Female Connection Type; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3/4 Inch Trade Size; Horizontal/Vertical Mounting Position; 1-9/32 Inch Turning Radius; Overall Dimension 2-1/16 Inch W X 4-1/16 Inch H; EYS Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39131708
• UPC 12 Digit: 783936110127
• SKU Name: klrk eys2

Resources

• Manufacturer Spec Sheet
