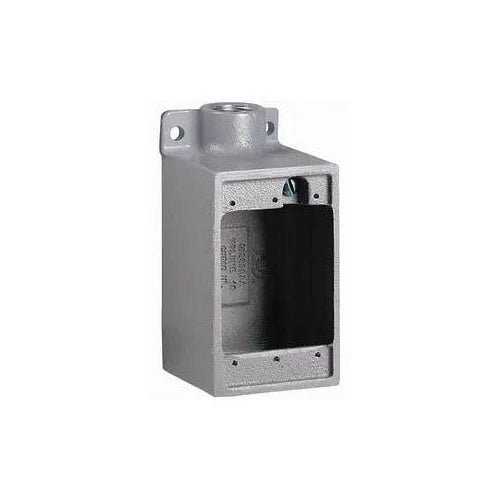

Killark FD-3 1" Aluminum Deep Device Bx Deadend

Overview

Killark FD-3 1" Aluminum Deep Device Bx Deadend

Product Specifications

• UPC: 78393615003
• Number Of Hubs: 1
• Hub Location: (1) End
• Hub Size: 1 Inch
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Shape: Deep
• Configuration Type: FD
• Approval: UL 514A, CSA C22.2, FS W-C-586D
• Additional Information: Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw
• Catalog Number: FD-3
• Model: FD
• Type: Dead End
• Height: 4-5/8 Inch
• Width: 2-7/8 Inch
• Depth: 2-7/8 Inch
• Capacity: 28 Cu Inch
• Number Of Gangs: 1
• Catalog Description: 1"ALUMINUM, DEEP DEAD END DEVICE BOX
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: Dead End Type; Electrostatically Applied Powder Coated Copper Free Aluminum Material; 2-7/8 Inch; 4-5/8 Inch; 2-7/8 Inch; Deep Shape; 1 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL 514A, CSA C22.2, FS W-C-586D Approval; 28 Cu Inch Capacity; (1) End Hub Location; FD Configuration Type; Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw; FD Model
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39121308
• UPC 12 Digit: 783936150031
• SKU Name: klrk fd3
