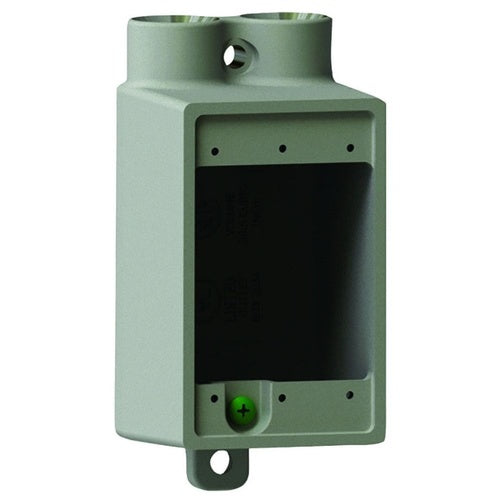

Killark FDS-2 3/4" FD Box Deep"S" Aluminum

Overview

Killark FDS-2 3/4" FD Box Deep"S" Aluminum

Product Specifications

• UPC: 78393637480
• Hub Location: (2) One End
• Hub Size: 3/4 Inch
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Shape: Deep
• Configuration Type: FDS
• Approval: UL 514A, CSA C22.2, FS W-C-586D
• Additional Information: Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw
• Catalog Number: FDS-2
• Model: FDS
• Height: 4-5/8 Inch
• Width: 2-7/8 Inch
• Depth: 2-7/8 Inch
• Capacity: 8.5 Cu Inch
• Number Of Gangs: 1
• Number Of Hubs: 2
• Catalog Description: 3/4"ALUMINUM, FDS TYPE DEEP DEVICE BOX
• Category: Cast Boxes
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 2-7/8 Inch; 4-5/8 Inch; 2-7/8 Inch; Deep Shape; 3/4 Inch Hub Size; 2 Hub(S); 1 Gang(S); UL 514A, CSA C22.2, FS W-C-586D Approval; 8.5 Cu Inch Capacity; (2) One End Hub Location; Fds Configuration Type; Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw; FDS Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39131708
• UPC 12 Digit: 783936374802
• SKU Name: klrk fds2

Resources

• Manufacturer Spec Sheet
