Overview

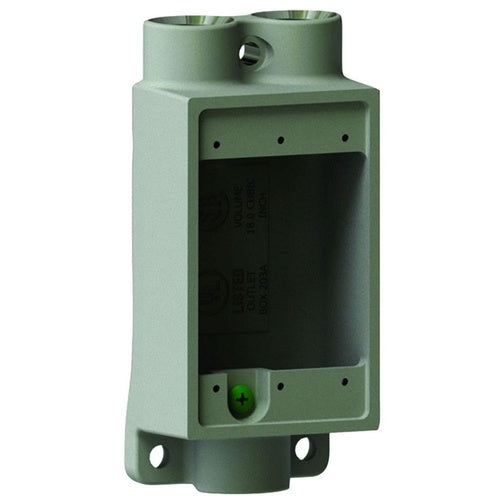

Killark FSCC-1 1/2" K Aluminum Shallow Device Box Type Fscc

Product Specifications

• UPC: 78393619058
• Hub Location: (2) One End, (1) Other End
• Hub Size: 1/2 Inch
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Shape: Shallow
• Configuration Type: FSCC
• Mounting Hardware: Not Included
• Approval: UL 514A, CSA C22.2
• Catalog Number: FSCC-1
• Model: FSCC
• Height: 4-5/8 Inch
• Width: 2-7/8 Inch
• Depth: 2 Inch
• Capacity: 18 Cu Inch
• Number Of Gangs: 1
• Number Of Hubs: 3
• Catalog Description: 1/2"ALUMINUM, FSCC TYPE SHALLOW DEVICE BOX
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 2-7/8 Inch; 4-5/8 Inch; 2 Inch; Shallow Shape; 1/2 Inch Hub Size; 3 Hub(S); 1 Gang(S); UL 514A, CSA C22.2 Approval; 18 Cu Inch Capacity; Not Included Mounting Hardware; (2) One End, (1) Other End Hub Location; Fscc Configuration Type; FSCC Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39121308
• UPC 12 Digit: 783936190587
• SKU Name: klrk fscc1

Resources

• Manufacturer Spec Sheet
