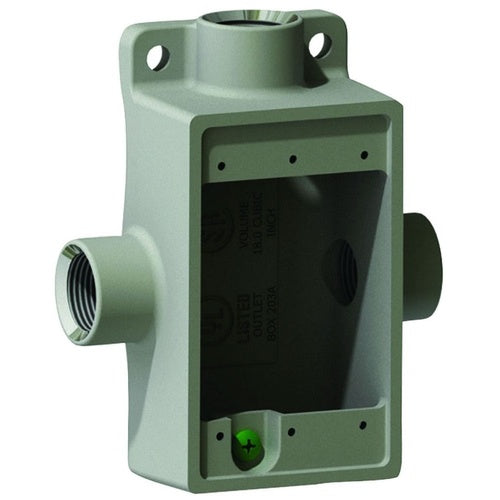

Killark FST-2M 3/4" FS Box Shallow"T" Iron

Overview

Killark FST-2M 3/4" FS Box Shallow"T" Iron

Product Specifications

• UPC: 78393604898
• Hub Location: (1) Each Side, (1) End
• Hub Size: 3/4 Inch
• Material: Electro Zinc/Chromate Sealant/Electrostatically Applied Powder Coated Duraloy Iron
• Shape: Shallow
• Configuration Type: FST
• Approval: UL 514A, CSA C22.2, FS W-C-586D
• Additional Information: Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw
• Catalog Number: FST-2M
• Model: FST
• Height: 4-5/8 Inch
• Width: 2-7/8 Inch
• Depth: 2 Inch
• Capacity: 18 Cu Inch
• Number Of Gangs: 1
• Number Of Hubs: 3
• Catalog Description: 3/4"IRON, FST TYPE SHALLOW DEVICE BOX
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Electro Zinc/Chromate Sealant/Electrostatically Applied Powder Coated Duraloy Iron Material; 2-7/8 Inch; 4-5/8 Inch; 2 Inch; Shallow Shape; 3/4 Inch Hub Size; 3 Hub(S); 1 Gang(S); UL 514A, CSA C22.2, FS W-C-586D Approval; 18 Cu Inch Capacity; (1) Each Side, (1) End Hub Location; Fst Configuration Type; Applicable Standard NEMA FB-1; Hub Type Tapered Threaded; Includes Internal Grounding Screw; FST Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Cast Device Box
• Unspsc: 39121308
• UPC 12 Digit: 783936048987
• SKU Name: klrk fst2m
