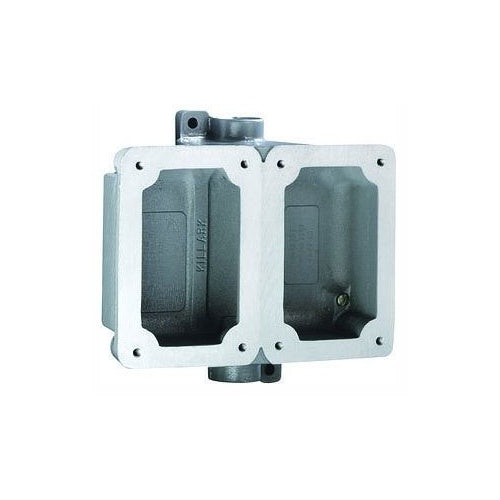

Killark FXB-11 Splice Box 3/4" 2-Gang Feedthru

Overview

Killark FXB-11 Splice Box 3/4" 2-Gang Feedthru

Product Specifications

• UPC: 78393620040
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA, IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Size: 6-13/16 Inch L x 7-17/32 Inch W x 2 Inch D
• Mounting: Lug
• Used On: FXCS/FXS Series Cover Sub Assembly
• Approval: UL, CSA
• Additional Information: Voltage Rating 600 VAC; Application Hazardous Location, Petroleum Refineries, Chemical and Petrochemical Plant, Remote Control of Motor
• Catalog Number: FXB-11
• Brand Name: SEAL-X
• Model: FXB
• Type: Feed Through
• Number Of Gangs: 2
• Number Of Hubs: 2
• Hub Size: 3/4 Inch
• Material: Cast Copper Free Aluminum Alloy
• Catalog Description: FXB SERIES - ALUMINUM FEED-THRU DOUBLE-GANG SPLICE BOX - FACTORY SEALED- HUB SIZE 3/4 INCH
• Category: Control Station Enclosures
• Full Technical Description: Feed Through Type; Cast Copper Free Aluminum Alloy Material; 6-13/16 Inch L X 7-17/32 Inch W X 2 Inch D Size; Fxcs/Fxs Series Cover Sub Assembly Used on; 3/4 Inch Hub Size; 2 Hub(S); 2 Gang(S); UL, CSA Approval; Lug Mounting; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia, Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G Enclosure; Voltage Rating 600 VAC; Application Hazardous Location, Petroleum Refineries, Chemical and Petrochemical Plant, Remote Control of Motor; FXB Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39122216
• UPC 12 Digit: 783936200408
• SKU Name: klrk fxb11

Resources

• Manufacturer Spec Sheet
