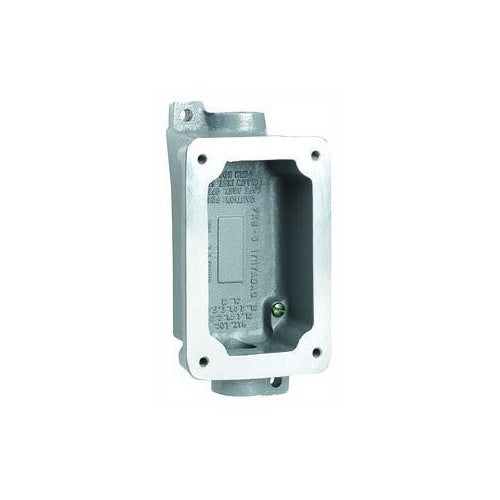

Killark FXB-6 Splice Box 1" 1-Gang Feedthru

Overview

Killark FXB-6 Splice Box 1" 1-Gang Feedthru

Product Specifications

• UPC: 78393620035
• Mounting: LUG
• Used On: FXCS/FXS SERIES COVER SUB ASSEMBLY
• Approval: UL, CSA
• Catalog Number: FXB-6
• Brand Name: KILLARK[R]
• Type: FEED THROUGH
• Number Of Gangs: 1
• Number Of Hubs: 2
• Hub Size: 1 INCH
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS I ZONE 1 AND 2 GROUP IIA, IIB, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7C/7D/9E/9F/9G
• Size: 6 13/16 INCH L X 3 11/16 INCH W X 1 3/4 INCH D
• Catalog Description: FXB SERIES - ALUMINUM FEED-THRU SINGLE-GANG SPLICE BOX - FACTORY SEALED- HUB SIZE 1 INCH
• Category: Cast Boxes
• Full Technical Description: Feed Through Type; 6 13/16 Inch L X 3 11/16 Inch W X 1 3/4 Inch D Size; Fxcs/Fxs Series Cover Sub Assembly Used on; 1 Inch Hub Size; 2 Hub(S); 1 Gang(S); UL, CSA Approval; Lug Mounting; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia, Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G Enclosure; KILLARK[R] Brand
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39122216
• UPC 12 Digit: 783936200354
• SKU Name: klrk fxb6

Resources

• Manufacturer Spec Sheet
