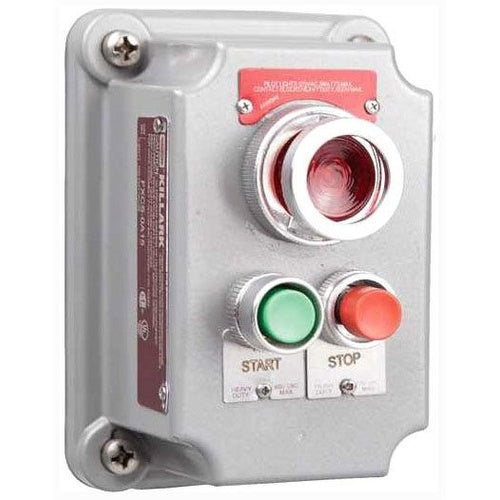

Killark FXCS-0A15 Fxcs Momentary Contact 2 Mini Pushbutton, 1-Pilot Light

Overview

Killark FXCS-0A15 Fxcs Momentary Contact 2 Mini Pushbutton, 1-Pilot Light

Product Specifications

• UPC: 78393620042
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Used On: FXCS Series Pushbutton and Pilot Light Control Station
• Approval: UL, CSA
• Additional Information: Button Color Green, Red; Current Rating 10 Ampere
• Catalog Number: FXCS-0A15
• Brand Name: SEAL-X
• Model: FXCS
• Constructional Feature: Weatherproof
• Device Type: (2) Pushbutton, (1) Pilot Light
• Contact Configuration: 1NO-1NC
• Pilot Light Type: 120 VAC 6 W Red Candelabra Base
• Material: Cast Copper Free Aluminum Alloy
• Catalog Description: FXCS MOMENTARY CONTACT, 2 MINI PUSH BUTTON, 1 PILOT LIGHT
• Category: Control Station Cover Assemblies
• Full Technical Description: Cast Copper Free Aluminum Alloy Material; Fxcs Series Pushbutton and Pilot Light Control Station Used on; 1NO-1NC Contact Configuration; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G Enclosure; Weatherproof; (2) Pushbutton, (1) Pilot Light Device Type; 120 VAC 6 W Red Candelabra Base Pilot Light Type; Button Color Green, Red; Current Rating 10 Ampere; FXCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Combination Cover
• Unspsc: 39122216
• UPC 12 Digit: 783936200422
• SKU Name: klrk fxcs0a15

Resources

• Manufacturer Spec Sheet
