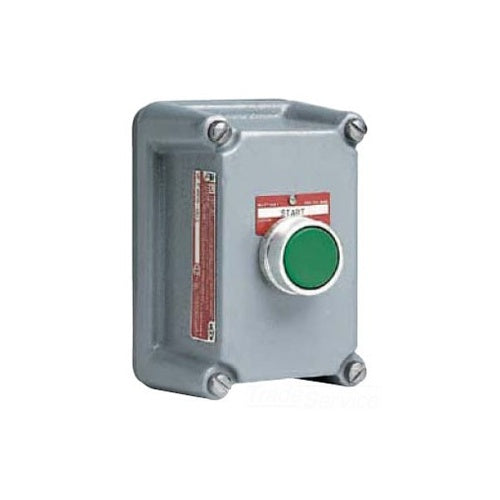

Killark FXCS-0B1 Single Green Pushbutton

Overview

Killark FXCS-0B1 Single Green Pushbutton

Product Specifications

• UPC: 78393620044
• Material: Cast Copper-Free Aluminum Alloy
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Used On: FXCS Series Pushbutton Control Station
• Approval: UL, CSA
• Catalog Number: FXCS-0B1
• Model: FXCS
• Constructional Feature: Explosionproof, Weatherproof
• Contact Rating: 600 Volt AC 10 Amp
• Operation Type: Momentary
• Contact Configuration: 1NO
• Number Of Pushbuttons: 1
• Cap/Lens Color: Green
• Catalog Description: FXCS SERIES - ALUMINUM MOMENTARY CONTACT SINGLE PUSH BUTTON COVER WITH DEVICE - FACTORY SEALED - GREEN BUTTON WITH "START" NAMEPLATE - 1NO CONTACT RATING
• Category: Control Station Cover Assemblies
• Full Technical Description: Cast Copper Free Aluminum Alloy Material; Fxcs Series Pushbutton Control Station Used on; 1NO Contact Configuration; Momentary Operation Type; 600 VAC 10 Ampere Contact Rating; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G Enclosure; Weatherproof; Green Cap/Lens Color; 1 Pushbutton(S); FXCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pushbutton Cover
• Unspsc: 39122216
• UPC 12 Digit: 783936200446
• SKU Name: klrk fxcs0b1

Resources

• Manufacturer Spec Sheet
