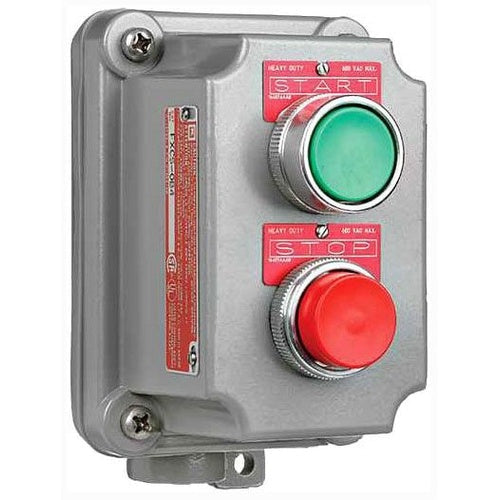

Killark FXCS-0B4U Green/Red Pushbutton W/ U Contact

Overview

Killark FXCS-0B4U Green/Red Pushbutton W/ U Contact

Product Specifications

• UPC: 78393620048
• Material: Cast Copper Free Aluminum Alloy
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Used On: FXCS Series Pushbutton Control Station
• Approval: UL, CSA
• Catalog Number: FXCS-0B4U
• Brand Name: SEAL-X
• Model: FXCS
• Constructional Feature: Weatherproof
• Contact Rating: 600 VAC 10 Ampere
• Operation Type: Momentary
• Contact Configuration: 2NO-2NC
• Cap/Lens Color: Green, Red
• Catalog Description: FXCS SERIES - ALUMINUM MOMENTARY CONTACT DOUBLE PUSH BUTTON COVER WITH DEVICE - FACTORY SEALED - GREEN BUTTON WITH "START" NAMEPLATE - RED BUTTON WITH "STOP" NAMEPLATE - 2NO/2NC CONTACT RATING
• Category: Control Station Cover Assemblies
• Full Technical Description: Cast Copper Free Aluminum Alloy Material; Fxcs Series Pushbutton Control Station Used on; 2NO-2NC Contact Configuration; Momentary Operation Type; 600 VAC 10 Ampere Contact Rating; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G Enclosure; Weatherproof; Green, Red Cap/Lens Color; FXCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pushbutton Cover
• Unspsc: 39122216
• UPC 12 Digit: 783936200484
• SKU Name: klrk fxcs0b4u

Resources

• Manufacturer Spec Sheet
