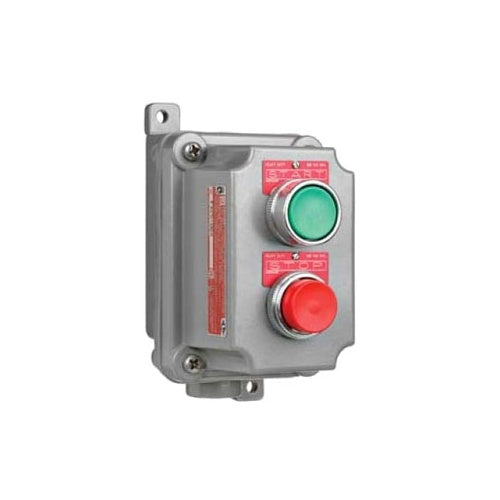

Killark FXCS-0B4U-LO Factory Sealed Cntl Statio(Cs)

Overview

Killark FXCS-0B4U-LO Factory Sealed Cntl Statio(Cs)

Product Specifications

• Actuator: Momentary push buttons
• Size: 5-5/16 H x 3-11/16 W x 2.59 D
• Special Features: Color coded wiring - more wiring space - easier field installation. Stainless steel captive screws for cover assembly. Device covers are cast copper-free aluminum alloy. Push button bodies are copper-free aluminum. Operating shaft in push buttons is stain
• Standard: UL, CSA
• Sub Brand: SEAL-X
• Type: Aluminum factory sealed cover with two push buttons
• Voltage Rating: 600 VAC
• Amperage Rating: 275m/550m/2.5 A
• Application: SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings;
• Brand Name: KILLARK
• Color: Gray
• Contact Configuration: 2-NO/2-NC
• Contact Rating: 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
• Environmental Conditions: Hazardous locations
• Number Of Poles: 2
• Catalog Description: FXCS SERIES - ALUMINUM MOMENTARY CONTACT DOUBLE PUSH BUTTON COVER WITHDEVICE - FACTORY SEALED - GREEN BUTTON WITH "START" NAMEPLATE - REDBUTTON WITH LOCKOUT & "STOP" NAMEPLATE - 2NO/2NC CONTACT RATING
• Category: Control Station Cover Assemblies
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Unspsc: 39122211
• UPC 12 Digit: 783936374833
• SKU Name: klrk fxcs0b4ulo

Resources

• Manufacturer Spec Sheet
