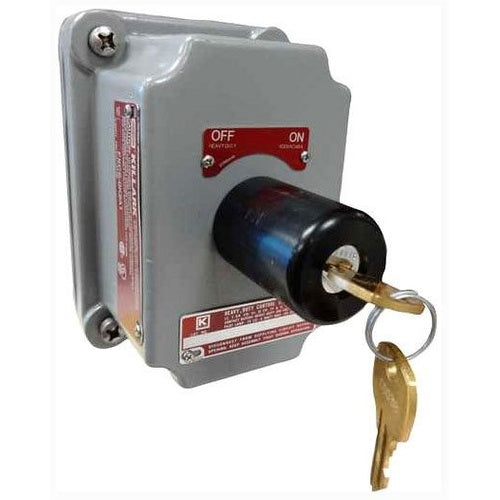

Killark FXCS-0S2A5 Cover W/ Device 2-Position Stand

Overview

Killark FXCS-0S2A5 Cover W/ Device 2-Position Stand

Product Specifications

• UPC: 78393620070
• Operator Type: Knob
• Material: Cast Copper Free Aluminum Alloy
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Used On: FXCS Series Selector Switch
• Approval: UL, CSA
• Additional Information: Hub Size 1/2 Inch; Voltage Rating 600 VAC; Application Hazardous Location, Petroleum Refineries, Chemical and Petrochemical Plant, Remote Control of Motor
• Catalog Number: FXCS-0S2A5
• Brand Name: SEAL-X
• Model: FXCS
• Constructional Feature: Weatherproof
• Operation Type: Maintained
• Contact Configuration: 2NO-2NC
• Number Of Selector Switches: 1
• Number Of Positions: 2
• Catalog Description: FXCS SERIES - ALUMINUM MAINTAINED CONTACT 2-POSITION SELECTOR SWITCH COVER WITH DEVICE - FACTORY SEALED - "OFF - ON"/BLANK NAMEPLATE -2NO/2NC CONTACT RATING
• Category: Control Station Cover Assemblies
• Full Technical Description: Cast Copper Free Aluminum Alloy Material; Fxcs Series Selector Switch Used on; 2NO-2NC Contact Configuration; Maintained Operation Type; UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G Enclosure; Weatherproof; Knob Operator Type; 2 Position(S); 1 Selector Switch(S); Hub Size 1/2 Inch; Voltage Rating 600 VAC; Application Hazardous Location, Petroleum Refineries, Chemical and Petrochemical Plant, Remote Control of Motor; FXCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Selector Switch Cover
• Unspsc: 39122216
• UPC 12 Digit: 783936200705
• SKU Name: klrk fxcs0s2a5

Resources

• Manufacturer Spec Sheet
