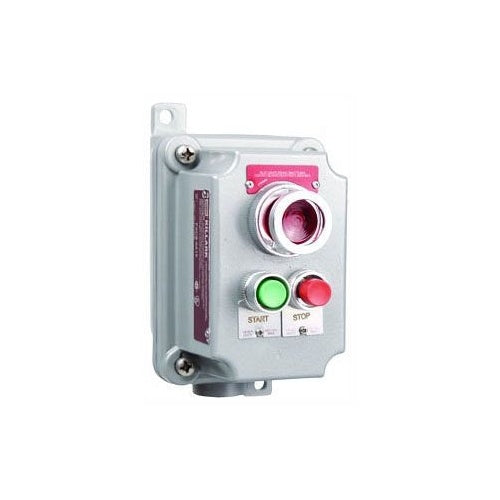

Killark FXCS-1A15 Box Cover 2Pb 1Pl 1/2" Dead Red Lens

Overview

Killark FXCS-1A15 Box Cover 2Pb 1Pl 1/2" Dead Red Lens

Product Specifications

• UPC: 78393620077
• Number Of Pushbuttons: 2
• Number Of Pilot Lights: 1
• Operator Type: BUTTON
• Pilot Light Type: 120 VAC 6 W S6 LAMP
• Legend: STOP-START
• Hub Size: 1/2 INCH
• Enclosure Material: CAST COPPER FREE ALUMINUM ALLOY
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS I ZONE 1 AND 2 GROUP IIA IIB, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 3/7C/7D/9E/9F/9G
• Approval: UL, CSA
• Additional Information: BUTTON COLOR GREEN, RED; LENS COLOR RED
• Catalog Number: FXCS-1A15
• Brand Name: SEAL-X[T]
• Model: FXCS
• Type: DEAD END
• Constructional Feature: WEATHER PROOF
• Voltage Rating: 600 VAC
• Current Rating: 10 AMPERE
• Contact Configuration: 1NO-1NC
• Catalog Description: FXCS MOMENTARY CONTACT, 2 MINI PUSH BUTTON- 1 PILOT LIGHT- RED LENS- COVER AND DEAD-END BOX, 1/2" HUB
• Category: Control Station Cover Assemblies
• Full Technical Description: Dead End Type; 1NO-1NC Contact Configuration; 1/2 Inch Hub Size; Cast Copper Free Aluminum Alloy Enclosure Material; UL, CSA Approval; 600 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G Enclosure; 10 Ampere Current Rating; Stop-Start Legend; Weather Proof; Button Operator Type; 120 VAC 6 W S6 Lamp Pilot Light Type; 2 Pushbutton(S); 1 Pilot Light(S); SEAL-X[T] Brand; Button Color Green, Red; Lens Color Red; FXCS Model
• Made In Usa: Yes
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pushbutton Switch And Pilot Light Control Station
• Unspsc: 39122216
• UPC 12 Digit: 783936200774
• SKU Name: klrk fxcs1a15

Resources

• Manufacturer Spec Sheet
