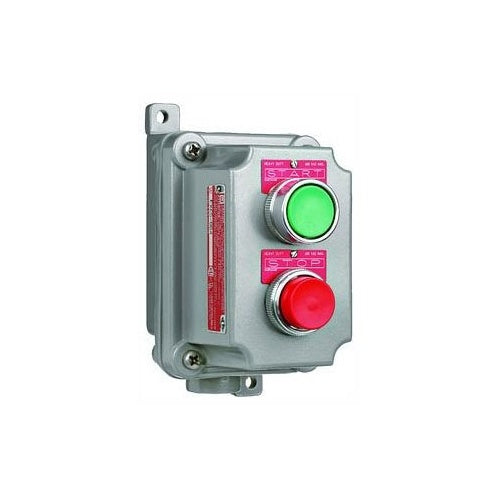

Killark FXCS-2B4 Control Station Cover Assembly

Overview

Killark FXCS-2B4 Control Station Cover Assembly

Product Specifications

• UPC: 78393620117
• Number Of Elements: 2
• Contact Configuration: 1NO-1NC, Momentary
• Operator Type: Front Operated Button
• Hub Size: 3/4 Inch
• Enclosure Material: Cast Copper Free Aluminum Alloy
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Approval: UL, CSA
• Additional Information: Button Color Green, Red
• Catalog Number: FXCS-2B4
• Brand Name: SEAL-X
• Model: FXCS
• Type: Dead End
• Constructional Feature: Weatherproof
• Voltage Rating: 600 VAC
• Current Rating: 10 Ampere
• Legend: Start/Stop
• Catalog Description: FXCS SERIES - ALUMINUM DEAD-END MOMENTARY CONTACT DOUBLE PUSH BUTTON CONTROL STATION - FACTORY SEALED - RED AND GREEN BUTTONS WITH "START"NAMEPLATES - HUB SIZE 3/4 INCH - 1NO/1NC CONTACT RATING
• Category: Control Station Cover Assemblies
• Full Technical Description: Dead End Type; 1NO-1NC, Momentary Contact Configuration; 3/4 Inch Hub Size; Cast Copper Free Aluminum Alloy Enclosure Material; UL, CSA Approval; 600 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G Enclosure; 10 Ampere Current Rating; Start/Stop Legend; Weatherproof; Front Operated Button Operator Type; 2 Element(S); Button Color Green, Red; FXCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39122216
• UPC 12 Digit: 783936201177
• SKU Name: klrk fxcs2b4
