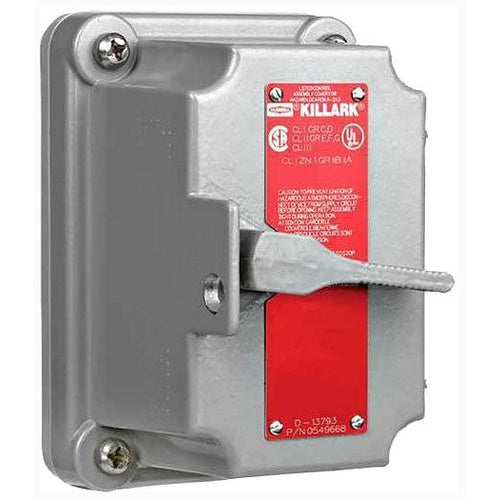

Killark FXS-1D Cover With Switch

Overview

Killark FXS-1D Cover With Switch

Product Specifications

• UPC: 78393619474
• Additional Information: Trip Setting 4 to 6 Milliampere; Trip Time UL Curve; Application Hazardous Location, Making, Breaking or Changing Connections in an Electrical Circuit
• Catalog Number: FXS-1D
• Voltage Rating: 120/277 VAC
• Current Rating: 30 Ampere
• Contact Configuration: 1-Pole
• Operator Type: Front Operated Lever
• Hub Size: 1/2 or 3/4 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9EFG
• Approval: UL, CSA
• Catalog Description: FXS SERIES - ALUMINUM 1-POLE TUMBLER SWITCH COVER WITH DEVICE - FACTORY SEALED - 30A
• Category: Selector Switch Complete Assemblies
• Full Technical Description: 1-Pole Contact Configuration; 1/2 or 3/4 Inch Hub Size; UL, CSA Approval; 120/277 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9EFG Enclosure; 30 Ampere Current Rating; Front Operated Lever Operator Type; Trip Setting 4 to 6 Milliampere; Trip Time UL Curve; Application Hazardous Location, Making, Breaking or Changing Connections in An Electrical Circuit
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Tumbler/Snap Switch Control Station
• Unspsc: 39122211
• UPC 12 Digit: 783936194745
• SKU Name: klrk fxs1d

Resources

• Manufacturer Spec Sheet
