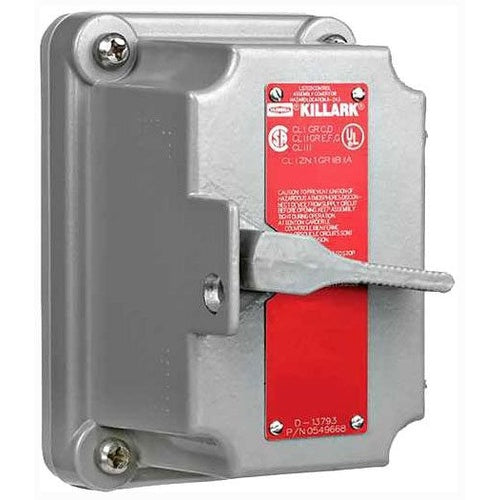

Killark FXS-2D Cover With Switch

Overview

Killark FXS-2D Cover With Switch

Product Specifications

• UPC: 78393619477
• Catalog Number: FXS-2D
• Brand Name: SEAL-X
• Model: FXS
• Type: Cover Assembly
• Used On: FXS Series Tumbler Switch Control Station
• Additional Information: Approval UL, CSA; Switch Style 2-Pole, 30 Ampere; Switch Rating 120/277 VAC at 20 Ampere; Enclosure Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Catalog Description: FXS SERIES - ALUMINUM 2-POLE TUMBLER SWITCH COVER WITH DEVICE - FACTORY SEALED - 30A
• Category: Selector Switch Complete Assemblies
• Full Technical Description: Cover Assembly Type; Fxs Series Tumbler Switch Control Station Used on; Approval UL, CSA; Switch Style 2-Pole, 30 Ampere; Switch Rating 120/277 VAC at 20 Ampere; Enclosure Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G; FXS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Assembled Control Station Accessories
• Unspsc: 39122211
• UPC 12 Digit: 783936194776
• SKU Name: klrk fxs2d

Resources

• Manufacturer Spec Sheet
