Overview

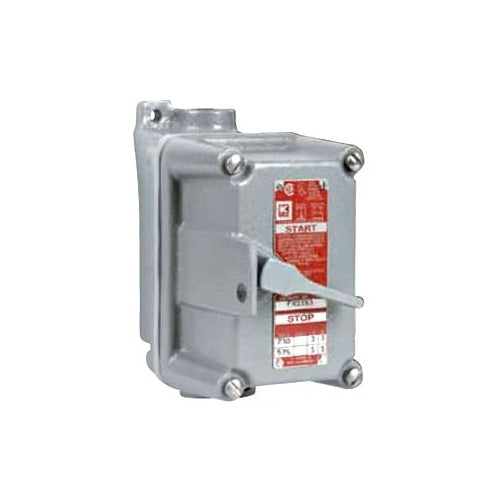

Killark FXS-41C 1P 20A Tumbler Switch

Product Specifications

• UPC: 78393619541
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Approval: UL, CSA
• Catalog Number: FXS-41C
• Brand Name: SEAL-X
• Model: FXS
• Type: Feed Through
• Voltage Rating: 120/277 VAC
• Current Rating: 20 Ampere
• Contact Configuration: 1-Pole
• Hub Size: 1/2 Inch
• Catalog Description: FXS SERIES - ALUMINUM FEED-THRU 1-POLE TUMBLER SWITCH UNIT - FACTORY SEALED - HUB SIZE 1/2 INCH - 20A
• Category: Selector Switch Complete Assemblies
• Full Technical Description: Feed Through Type; 1-Pole Contact Configuration; 1/2 Inch Hub Size; UL, CSA Approval; 120/277 VAC Voltage Rating; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G Enclosure; 20 Ampere Current Rating; FXS Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Tumbler/Snap Switch Control Station
• Unspsc: 39122211
• UPC 12 Digit: 783936195414
• SKU Name: klrk fxs41c

Resources

• Manufacturer Spec Sheet
