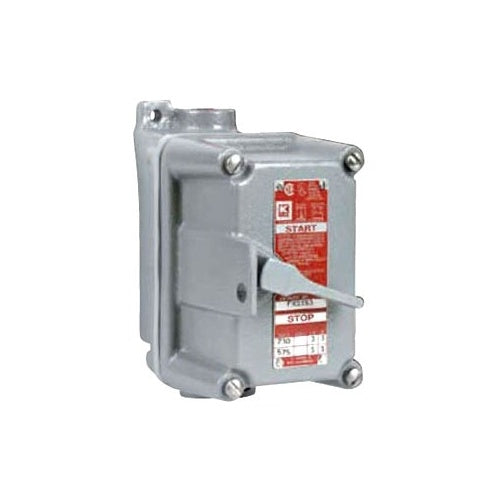

Killark FXS-51C 1P 20A Tumbler Switch

Overview

Killark FXS-51C 1P 20A Tumbler Switch

Product Specifications

• UPC: 78393619558
• Hub Size: 3/4 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class l Zone 1 and 2 Group llA llB, Class II Div 1 and 2 Group E F G, Class lll, NEMA 3, NEMA 7CD, NEMA 9EFG
• Approval: UL, CSA
• Additional Information: Frequency Rating 60 Hertz; Trip Setting Rating 4 to 6 Milliamp; Application Making, Breaking Electrical Circuit
• Catalog Number: FXS-51C
• Brand Name: Killark
• Model: FXS
• Type: Feed-Through
• Constructional Feature: Weatherproof
• Voltage Rating: 120/277 Volt AC
• Current Rating: 20 Amp
• Contact Configuration: 1-Pole
• Catalog Description: FXS SERIES - FACTORY SEALED FEED-THRU BOX AND COVER WITH 1-POLE TUMBLER SWITCH - CONDUIT HUB SIZE 3/4 IN - 20 AMPS
• Category: Selector Switch Complete Assemblies
• Full Technical Description: Feed-Through Type; 1-Pole Contact Configuration; 3/4 Inch Hub Size; UL, CSA Approval; 120/277 Volt AC Voltage Rating; Class I Div 1 and 2 Group C D, Class L Zone 1 and 2 Group Lla Llb, Class II Div 1 and 2 Group E F G, Class Lll, NEMA 3, NEMA 7CD, NEMA 9EFG Enclosure; 20 Amp Current Rating; Weatherproof; Frequency Rating 60 Hertz; Trip Setting Rating 4 to 6 Milliamp; Application Making, Breaking Electrical Circuit; FXS Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Tumbler/Snap Switch Control Station
• Unspsc: 39122211
• UPC 12 Digit: 783936195582
• SKU Name: klrk fxs51c

Resources

• Manufacturer Spec Sheet
