Overview

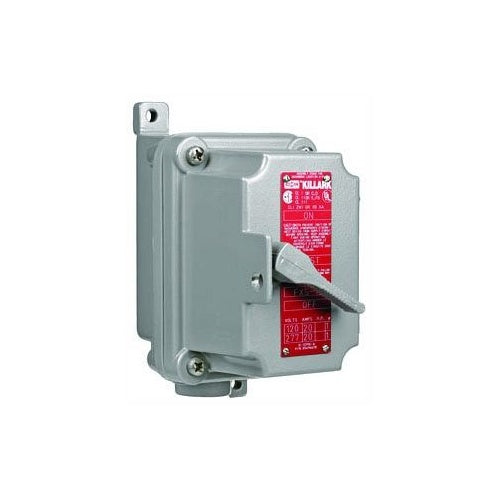

Killark FXSD02 2P 1Ph Cover & Switch Assembly

Product Specifications

• UPC: 78393619828
• Catalog Number: FXSD02
• Brand Name: HUBBELL., KILLARK.
• Model: FXSD
• 1 Phase Hp/Volts: 1 HP/3/4 HP AT 115 TO 230 VAC
• Poles: 2
• Enclosure Type: NEMA 3
• Additional Information: APPROVAL UL, CSA; INCLUDES MOTOR RUNNING PROTECTION
• Catalog Description: FXSD SERIES - ALUMINUM SINGLE GANG 2-POLE, SINGLE PHASE MANUAL MOTOR STARTING SWITCH COVER AND SWITCH ASSEMBLY - WITH OVERLOAD PROTECTION
• Category: Manual Motor Switches & Accessories
• Full Technical Description: NEMA 3 Enclosure Type; 2 Poles; 1 Hp/3/4 HP at 115 to 230 VAC 1 Phase Hp/Volts; HUBBELL., Killark. Brand; Approval UL, CSA; Includes Motor Running Protection; FXSD Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Manual Starter
• Unspsc: 39121521
• UPC 12 Digit: 783936198286
• SKU Name: klrk fxsd02

Resources

• Manufacturer Spec Sheet
