Killark FXSX53 3P Manual Motor Starter

Overview

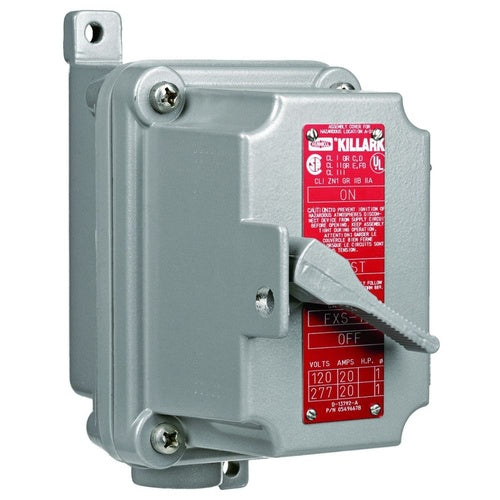

Killark FXSX53 3P Manual Motor Starter

Product Specifications

• UPC: 78393619810
• Construction Standard: NEMA
• Additional Information: Approval UL, CSA; Hub Size 3/4 Inch; Hub Style Feed Thru; Number of Gangs 1
• Catalog Number: FXSX53
• Model: FXSX
• Type: Motor Protector
• 3 Phase Hp/Volts: 2 HP at 115 VAC, 3 HP at 200 to 230 VAC, 5 HP at 460 to 575 VAC
• Current Rating: 30 Ampere at 250 V, 20 Ampere at 600 V
• Poles: 3
• Enclosure Type: NEMA 3
• Operator: Shaft
• Catalog Description: XSD/XSX/FXSD/FXSX SERIES - FXSX SINGLE GANG ALUMINUM MANUAL MOTOR STARTING SWITCH - 3 POLE 3 PHASE - FEED-THRU - HUB SIZE 3/4 IN
• Category: Manual Motor Switches & Accessories
• Full Technical Description: Motor Protector Type; 30 Ampere at 250 V, 20 Ampere at 600 V Current Rating; NEMA 3 Enclosure Type; NEMA Construction Standard; 3 Poles; 2 HP at 115 VAC, 3 HP at 200 to 230 VAC, 5 HP at 460 to 575 VAC 3 Phase Hp/Volts; Shaft Operator; Approval UL, CSA; Hub Size 3/4 Inch; Hub Style Feed Thru; Number of Gangs 1; FXSX Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Manual Starter
• Unspsc: 39121521
• UPC 12 Digit: 783936198101
• SKU Name: klrk fxsx53

Resources

• Manufacturer Spec Sheet
