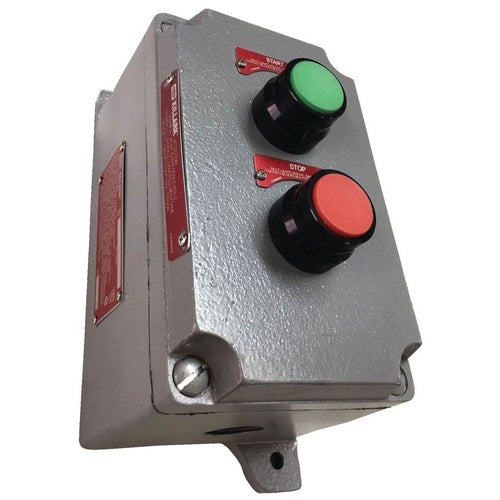

Killark GCS-15 2-Hole Operator Body

Overview

Killark GCS-15 2-Hole Operator Body

Product Specifications

• UPC: 78393620542
• Catalog Number: GCS-15
• Model: GCS
• Number Of Gangs: 3
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G
• Size: 4 Inch W x 4-1/4 Inch D
• Used On: GCS/SWBC Series Control Station
• Approval: UL, CSA
• Additional Information: Number of Operator Holes 2; Includes SWB-15 Box, X-61 Cover
• Catalog Description: GCS SERIES - ALUMINUM STYLE 1 BODY WITH 2 DRILLED AND TAPPED OPERATOR HOLES IN COVER
• Category: Control Station Accessories
• Full Technical Description: 4 Inch W X 4-1/4 Inch D Size; Gcs/Swbc Series Control Station Used on; 3 Gang(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; Number of Operator Holes 2; Includes Swb-15 Box, X-61 Cover; GCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39122216
• UPC 12 Digit: 783936205427
• SKU Name: klrk gcs15

Resources

• Manufacturer Spec Sheet
