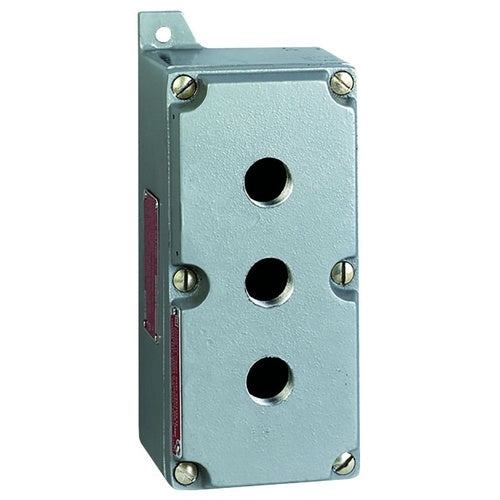

Killark GCS-16 3-Hole Operator Body

Overview

Killark GCS-16 3-Hole Operator Body

Product Specifications

• UPC: 78393620543
• Catalog Number: GCS-16
• Model: GCS
• Number Of Gangs: 3
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G
• Size: 4 Inch W x 4-1/4 Inch D
• Used On: GCS/SWBC Series Control Station
• Approval: UL, CSA
• Additional Information: Number of Operator Holes 3; Includes SWB-16 Box, X-62 Cover
• Catalog Description: GCS SERIES - ALUMINUM OPERATOR BODY - THREE DRILLED AND TAPPED OPERATOR HOLES IN COVER - STYLE 1
• Category: Control Station Accessories
• Full Technical Description: 4 Inch W X 4-1/4 Inch D Size; Gcs/Swbc Series Control Station Used on; 3 Gang(S); UL, CSA Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 and 2 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III, NEMA 7C/7D/9E/9F/9G Enclosure; Number of Operator Holes 3; Includes Swb-16 Box, X-62 Cover; GCS Model
• Made In Usa: Yes
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Control Station Box
• Unspsc: 39122216
• UPC 12 Digit: 783936205434
• SKU Name: klrk gcs16

Resources

• Manufacturer Spec Sheet
