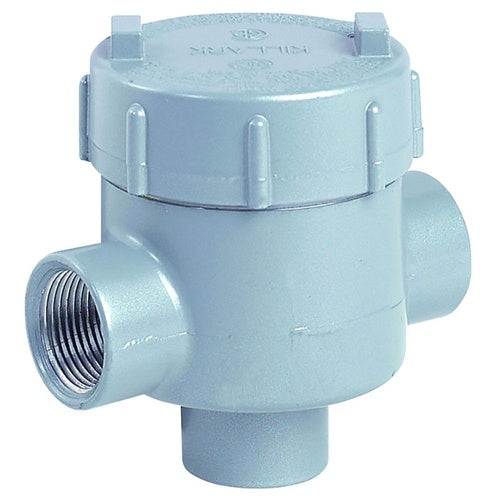

Killark GECCAT-1 Hazardous Location Fitting

Overview

Killark GECCAT-1 Hazardous Location Fitting

Product Specifications

• UPC: 78393621191
• Cover Type: INTERNALLY THREADED
• Cover Opening Diameter: 2 11/16 INCH
• Enclosure: CLASS I DIV 1 AND 2 GROUP C D, CLASS I ZONE 1 GROUP IIA IIB, CLASS II, CLASS III
• Material: ELECTROSTATICALLY APPLIED POWDER COATED COPPER FREE ALUMINUM
• Approval: UL 886, UL FS WC-586D, CSA C22.2
• Catalog Number: GECCAT-1
• Brand Name: KILLARK[R]
• Model: GE
• Hub Size: 1/2 INCH
• Number Of Hubs: 3
• Hub Location: FEED THROUGH, (2) SIDE, (1) DOWN
• Capacity: 19 CU INCH
• Shape: ROUND
• Catalog Description: 1/2" GEC OUTLET BODY CAT TYPE, ALUMINUM
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; Round Shape; 1/2 Inch Hub Size; 3 Hub(S); UL 886, UL FS WC-586D, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class I Zone 1 Group Iia Iib, Class II, Class III Enclosure; Internally Threaded Cover Type; 19 Cu Inch Capacity; Feed Through, (2) Side, (1) Down Hub Location; 2 11/16 Inch Cover Opening Diameter; KILLARK[R] Brand; GE Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936211916
• SKU Name: klrk geccat1

Resources

• Manufacturer Spec Sheet
• Technical Drawing
